IRF60DM206 - Infineon

Description: Infineon IRF60DM206 N-channel MOSFET, 130 A, 60 V DirectFET, 6+Tab-Pin ME

Download IRF60DM206 Model

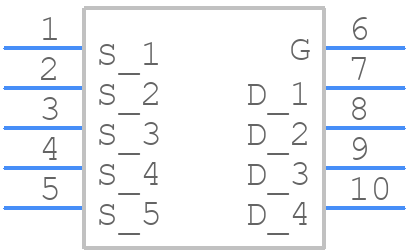

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IRF60DM206 - Infineon PCB footprint - Other - Other - IRF60DM206-8
click to zoom
3D Models
IRF60DM206 - Infineon  - 3D model - Other - IRF60DM206-8
click to zoom

IRF60DM206 Details

  • Manufacturer Part Number:

    IRF60DM206

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    81 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    130 A

  • Drain-source On Resistance-Max:

    0.0029 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    420 pF

  • JESD-30 Code:

    R-XBCC-N6

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    96 W

  • Pulsed Drain Current-Max (IDM):

    530 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRF60DM206 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRF60DM206 is -40°C to 150°C.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, ensure good airflow around the device and avoid blocking the heat sink fins.
  • The maximum voltage rating for the IRF60DM206 is 600V.
  • Use a voltage regulator or a voltage clamp to prevent overvoltage. Implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
  • The recommended gate drive voltage for the IRF60DM206 is 10-15V.
