The maximum operating temperature range for the IRF7739L1TRPBF is -40°C to 150°C.
To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
The recommended gate drive voltage for the IRF7739L1TRPBF is between 10V and 15V, with a maximum gate-source voltage of ±20V.
To protect the IRF7739L1TRPBF from ESD, handle the device with anti-static wrist straps, mats, or bags, and ensure that the device is stored in a static-safe environment.
The maximum allowable power dissipation for the IRF7739L1TRPBF is 150W, but this value can be derated based on the operating temperature and other factors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRF7739L1TRPBF Overview

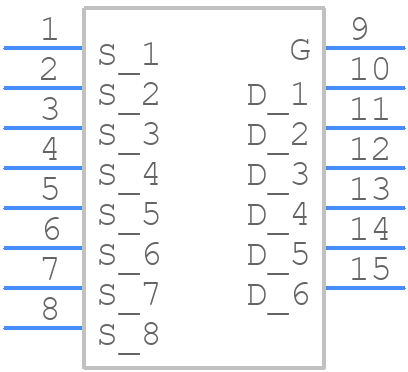

Use the download button to access the IRF7739L1TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRF77,
or try a keyword search, such as Power Field-Effect Transistors
