IRF7769L1TRPBF - Infineon

Description: Infineon IRF7769L1TRPBF N-channel MOSFET, 124 A, 100 V DirectFET, HEXFET, 9+Tab-Pin L8

Download IRF7769L1TRPBF Model

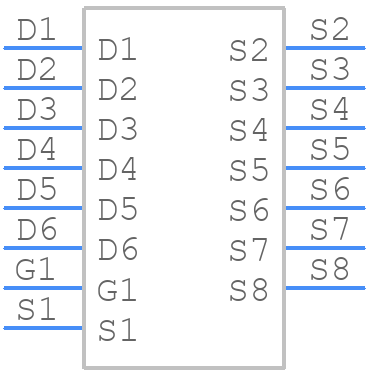

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IRF7769L1TRPBF - Infineon PCB footprint - Other - Other - IRF7769L1TRPBF-1
click to zoom
3D Models
IRF7769L1TRPBF - Infineon  - 3D model - Other - IRF7769L1TRPBF-1
click to zoom

IRF7769L1TRPBF Details

  • Manufacturer Part Number:

    IRF7769L1TRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.9

  • Avalanche Energy Rating (Eas):

    260 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    375 A

  • Drain-source On Resistance-Max:

    0.0035 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XBCC-N3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    9

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation Ambient-Max:

    3.3 W

  • Power Dissipation-Max (Abs):

    125 W

  • Pulsed Drain Current-Max (IDM):

    500 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRF7769L1TRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRF7769L1TRPBF is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
  • The recommended gate drive voltage for the IRF7769L1TRPBF is between 10V and 15V, with a maximum gate-source voltage of ±20V.
  • To protect the IRF7769L1TRPBF from ESD, handle the device with anti-static wrist straps, mats, or bags, and ensure that the device is stored in anti-static packaging.
  • The maximum allowable power dissipation for the IRF7769L1TRPBF is 150W, but this value can be derated based on the operating temperature and other factors.
