IRF7779L2TRPBF - Infineon

Description: INFINEON - IRF7779L2TRPBF - Power MOSFET, N Channel, 150 V, 67 A, 0.009 ohm, DirectFET L8, Surface Mount

Download IRF7779L2TRPBF Model

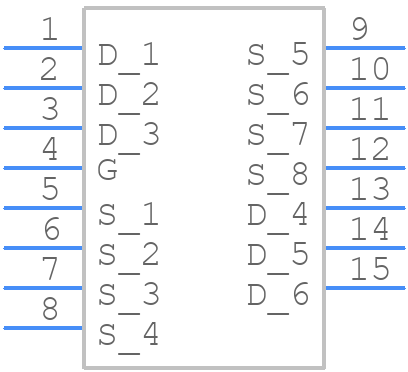

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IRF7779L2TRPBF - Infineon PCB footprint - Other - Other - IRF7779L2TRPBF-2
click to zoom
3D Models
IRF7779L2TRPBF - Infineon  - 3D model - Other - IRF7779L2TRPBF-2
click to zoom

IRF7779L2TRPBF Details

  • Manufacturer Part Number:

    IRF7779L2TRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.2

  • Avalanche Energy Rating (Eas):

    270 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    150 V

  • Drain Current-Max (ID):

    375 A

  • Drain-source On Resistance-Max:

    0.011 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    180 pF

  • JESD-30 Code:

    R-XBCC-N9

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    9

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation Ambient-Max:

    3.3 W

  • Power Dissipation-Max (Abs):

    125 W

  • Pulsed Drain Current-Max (IDM):

    270 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRF7779L2TRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRF7779L2TRPBF is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
  • To minimize EMI, it's recommended to use a multi-layer PCB with a solid ground plane, keep the power traces short and wide, and use shielding or filtering components as needed.
  • Yes, the IRF7779L2TRPBF is suitable for high-frequency switching applications up to 1 MHz, but it's essential to consider the device's switching characteristics, such as rise and fall times, and ensure proper PCB layout and decoupling.
  • To protect the device, use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, such as zener diodes, TVS diodes, or fuses, and ensure that the device is operated within its specified voltage and current ratings.
