IRF9140 - Infineon

Description: Trans MOSFET P-CH 100V 18A 3-Pin(2+Tab) TO-3

Download IRF9140 Model

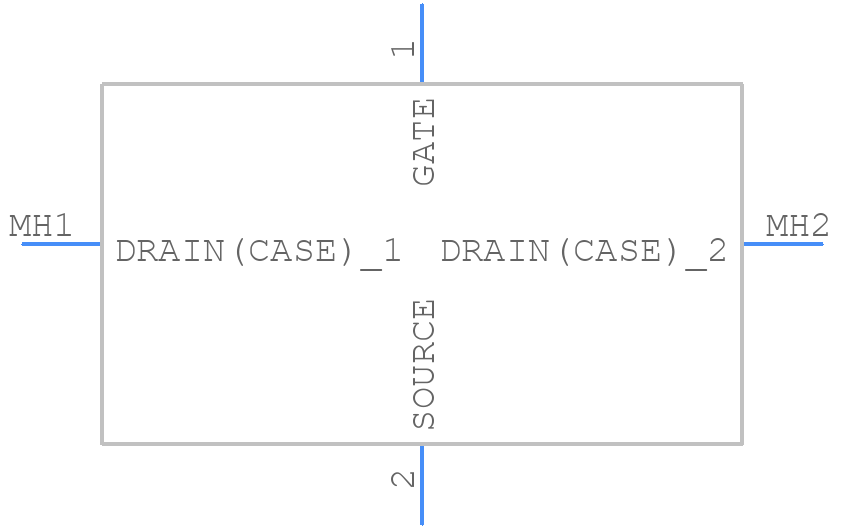

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

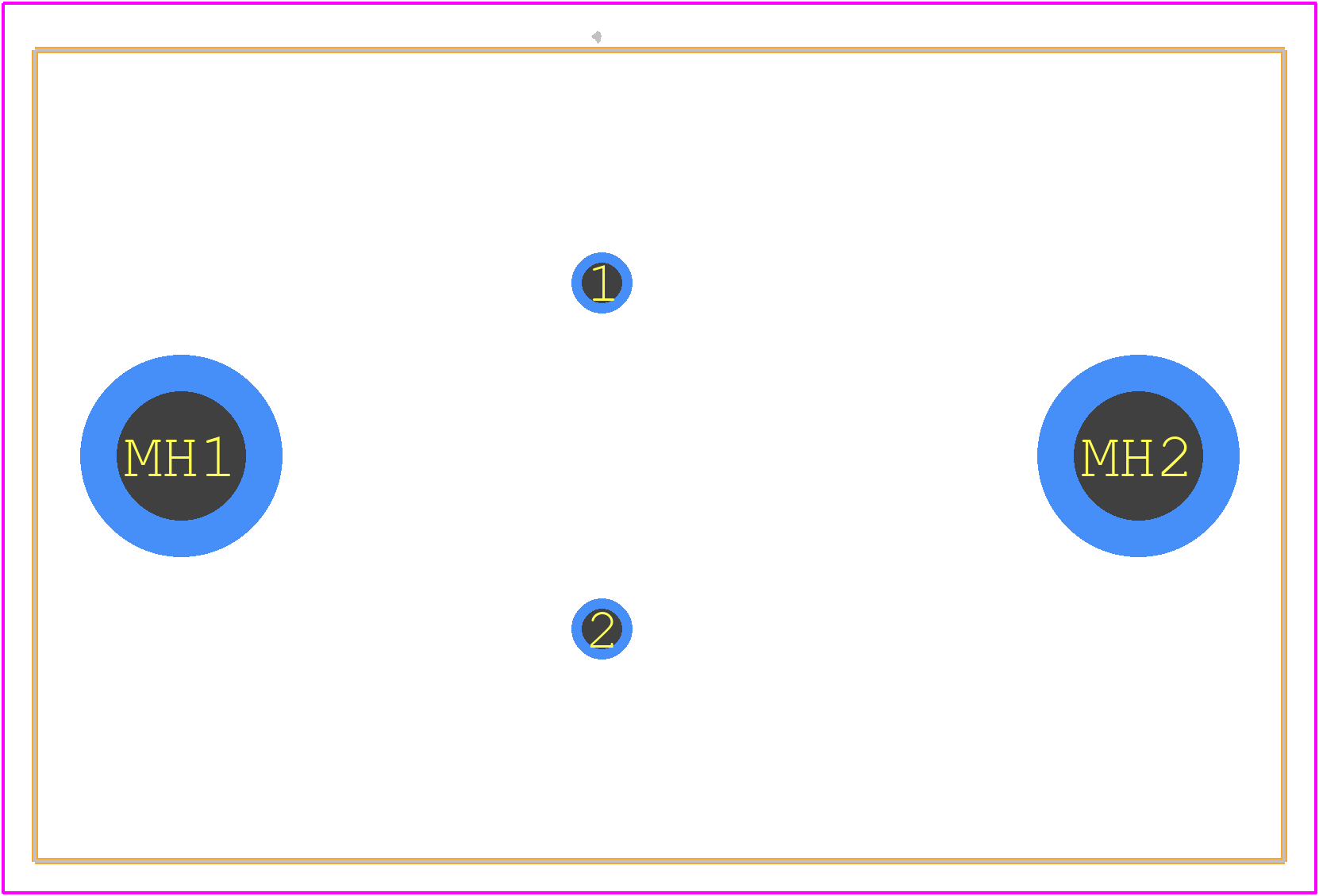

IRF9140 - Infineon PCB footprint - Other - Other - IRF9140-3
click to zoom
3D Models
IRF9140 - Infineon  - 3D model - Other - IRF9140-3
click to zoom

IRF9140 Details

  • Manufacturer Part Number:

    IRF9140

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4

  • Avalanche Energy Rating (Eas):

    500 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    18 A

  • Drain-source On Resistance-Max:

    0.23 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-204AA

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    125 W

  • Pulsed Drain Current-Max (IDM):

    72 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    150 ns

  • Turn-on Time-Max (ton):

    120 ns

IRF9140 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRF9140 is -55°C to 175°C.
  • To ensure proper biasing, the gate-source voltage (Vgs) should be between 2V and 4V, and the drain-source voltage (Vds) should be between 1V and 20V.
  • The maximum current rating for the IRF9140 is 14A continuous drain current and 42A pulsed drain current.
  • To protect the IRF9140 from overvoltage and overcurrent, use a voltage regulator to limit the voltage supply, and add current-limiting resistors or fuses to prevent excessive current.
  • Yes, the IRF9140 is suitable for high-frequency switching applications up to 1MHz, but ensure proper PCB layout and decoupling to minimize parasitic inductance and capacitance.
