IRFS4010TRL7PP - Infineon

Description: IRFS4010TRL7PP N-Channel MOSFET, 190 A, 100 V HEXFET, 7 + Tab-Pin D2PAK Infineon

Download IRFS4010TRL7PP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

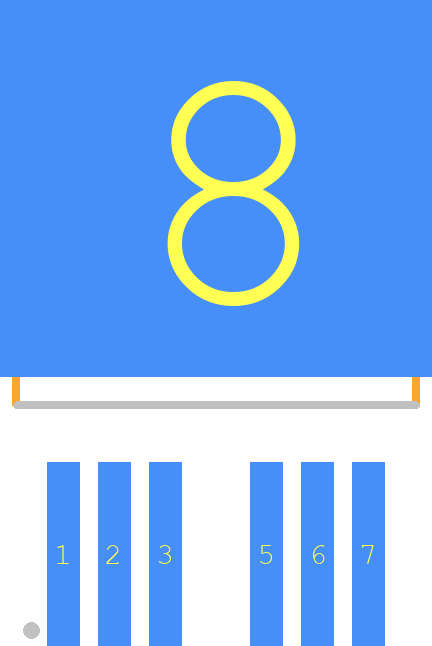

IRFS4010TRL7PP - Infineon PCB footprint - Other - Other - PG-TO263-7-3_2-ren1
click to zoom

IRFS4010TRL7PP Details

  • Manufacturer Part Number:

    IRFS4010TRL7PP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    190 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    380 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Time@Peak Reflow Temperature-Max (s):

    30

IRFS4010TRL7PP Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRFS4010TRL7PP is -55°C to 175°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
  • The recommended gate drive voltage for the IRFS4010TRL7PP is between 10V and 15V, with a maximum voltage of 20V.
  • To protect the IRFS4010TRL7PP, use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, and ensure that the device is operated within its specified voltage and current ratings.
  • The maximum allowable power dissipation for the IRFS4010TRL7PP is 150W, but this can be affected by factors such as ambient temperature, heat sinking, and airflow.
