IRFS7434TRL7PP - Infineon

Description: IRFS7434TRL7PP N-Channel MOSFET, 362 A, 40 V HEXFET, 7-Pin D2PAK Infineon

Download IRFS7434TRL7PP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

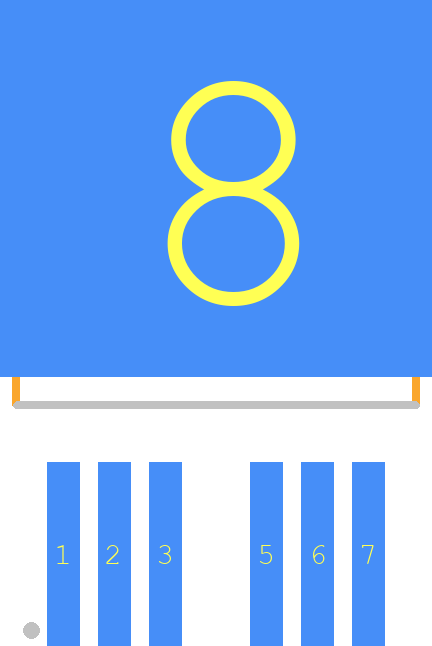

IRFS7434TRL7PP - Infineon PCB footprint - Other - Other - PG-TO263-7-3_2
click to zoom
3D Models
IRFS7434TRL7PP - Infineon  - 3D model - Other - PG-TO263-7-3_2
click to zoom

IRFS7434TRL7PP Details

  • Manufacturer Part Number:

    IRFS7434TRL7PP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    880 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    240 A

  • Drain-source On Resistance-Max:

    0.001 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    1060 pF

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    245 W

  • Pulsed Drain Current-Max (IDM):

    1300 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    192 ns

  • Turn-on Time-Max (ton):

    148 ns

IRFS7434TRL7PP Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRFS7434TRL7PP is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, and to ensure proper heat sinking and thermal management.
  • The recommended gate drive voltage for the IRFS7434TRL7PP is between 10V and 15V, with a maximum gate-source voltage of ±20V.
  • To protect the IRFS7434TRL7PP, use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, and ensure that the device is operated within its recommended operating conditions.
  • The maximum allowable power dissipation for the IRFS7434TRL7PP is dependent on the operating conditions and thermal design. Refer to the datasheet for specific power dissipation limits.
