The maximum operating temperature range for the IRL40T209ATMA1 is -55°C to 175°C.
To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, the device should be mounted on a PCB with a thermal via to dissipate heat efficiently.
The recommended gate drive voltage for the IRL40T209ATMA1 is between 10V and 15V, with a maximum gate-source voltage of 20V.
To protect the IRL40T209ATMA1 from overvoltage and overcurrent, a voltage clamp or a transient voltage suppressor (TVS) can be used. Additionally, a current sense resistor and a fuse can be used to detect and respond to overcurrent conditions.
The recommended PCB layout for the IRL40T209ATMA1 includes a solid ground plane, a separate power plane for the drain and source, and a Kelvin connection for the gate driver. Additionally, the PCB should be designed to minimize parasitic inductance and capacitance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRL40T209ATMA1 Overview

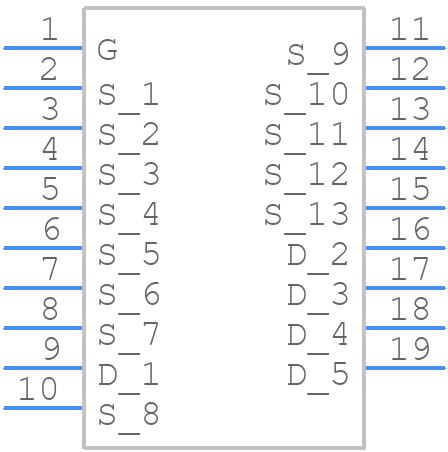

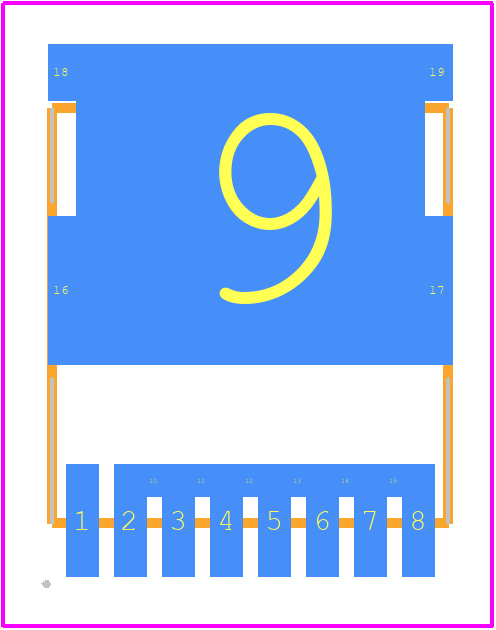

Use the download button to access the IRL40T209ATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRL40,
or try a keyword search, such as Power Field-Effect Transistors
