IRL7472L1TRPbF - Infineon

Description: Infineon IRL7472L1TRPbF N-channel MOSFET, 645 A, 40 V DirectFET, 9+Tab-Pin L8

Download IRL7472L1TRPbF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

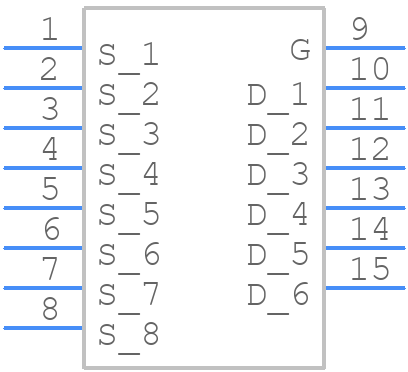

IRL7472L1TRPbF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRL7472L1TRPbF - Infineon PCB footprint - Other - Other - DIRECTFET L8
click to zoom
3D Models
IRL7472L1TRPbF - Infineon - 3D model - Other - DIRECTFET L8
click to zoom

IRL7472L1TRPbF Details

  • Manufacturer Part Number:

    IRL7472L1TRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    765 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    68 A

  • Drain-source On Resistance-Max:

    0.00045 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XBCC-N9

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    9

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    1500 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRL7472L1TRPbF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRL7472L1TRPBF is -55°C to 150°C.
  • To ensure reliability, follow proper thermal management, use a suitable heat sink, and ensure the device is operated within its specified ratings and guidelines.
  • Infineon provides a reference design and layout guidelines in the datasheet and application notes. Follow these guidelines to ensure optimal thermal performance and minimize parasitic inductance.
  • Yes, the IRL7472L1TRPBF is suitable for high-frequency switching applications up to 1 MHz. However, ensure proper PCB layout, decoupling, and filtering to minimize electromagnetic interference (EMI).
  • Handle the device with ESD-protective equipment, follow proper handling and storage procedures, and use ESD-protective packaging to prevent damage.
