Part Image

IRM-02-15 - Mean Well

Description: MEAN WELL - IRM-02-15 - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 2 W, 15 V, 133 mA

Download IRM-02-15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

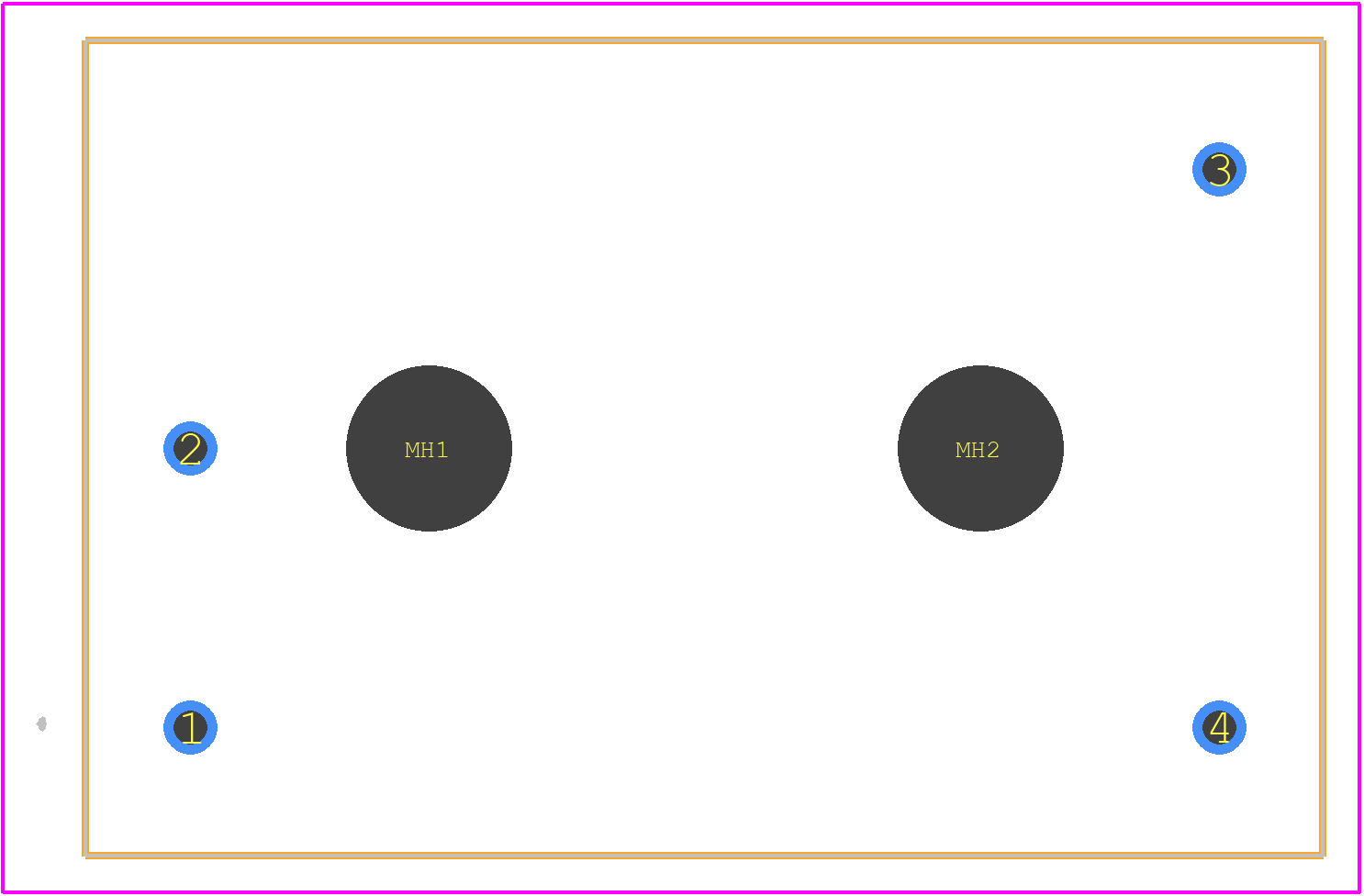

IRM-02-15 - Mean Well PCB footprint - Other - Other - IRM-02-15-2
click to zoom
3D Models
IRM-02-15 - Mean Well  - 3D model - Other - IRM-02-15-2
click to zoom

IRM-02-15 Details

  • Manufacturer Part Number:

    IRM-02-15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-4

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    Mean Well

  • YTEOL:

    6.8

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    BSMI, CB, CE, EAC, EN, LPS, TUV, UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    75%

  • Input Voltage-Max:

    305 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    33.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    0.133 A

  • Output Voltage-Max:

    15.375 V

  • Output Voltage-Min:

    14.625 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    SHORT CIRCUIT; OUTPUT OVER VOLTAGE; OVER LOAD

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Seated Height-Max:

    15 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    22.2 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRM-02-15 Overview

Use the download button to access the IRM-02-15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRM-0, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
