IRM-03-24S - Mean Well

Description: AC/DC Power Modules 85-305Vac 24Vout 125mA 3W SMT mnt

Download IRM-03-24S Model

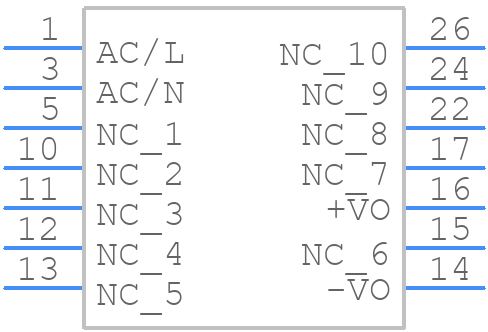

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

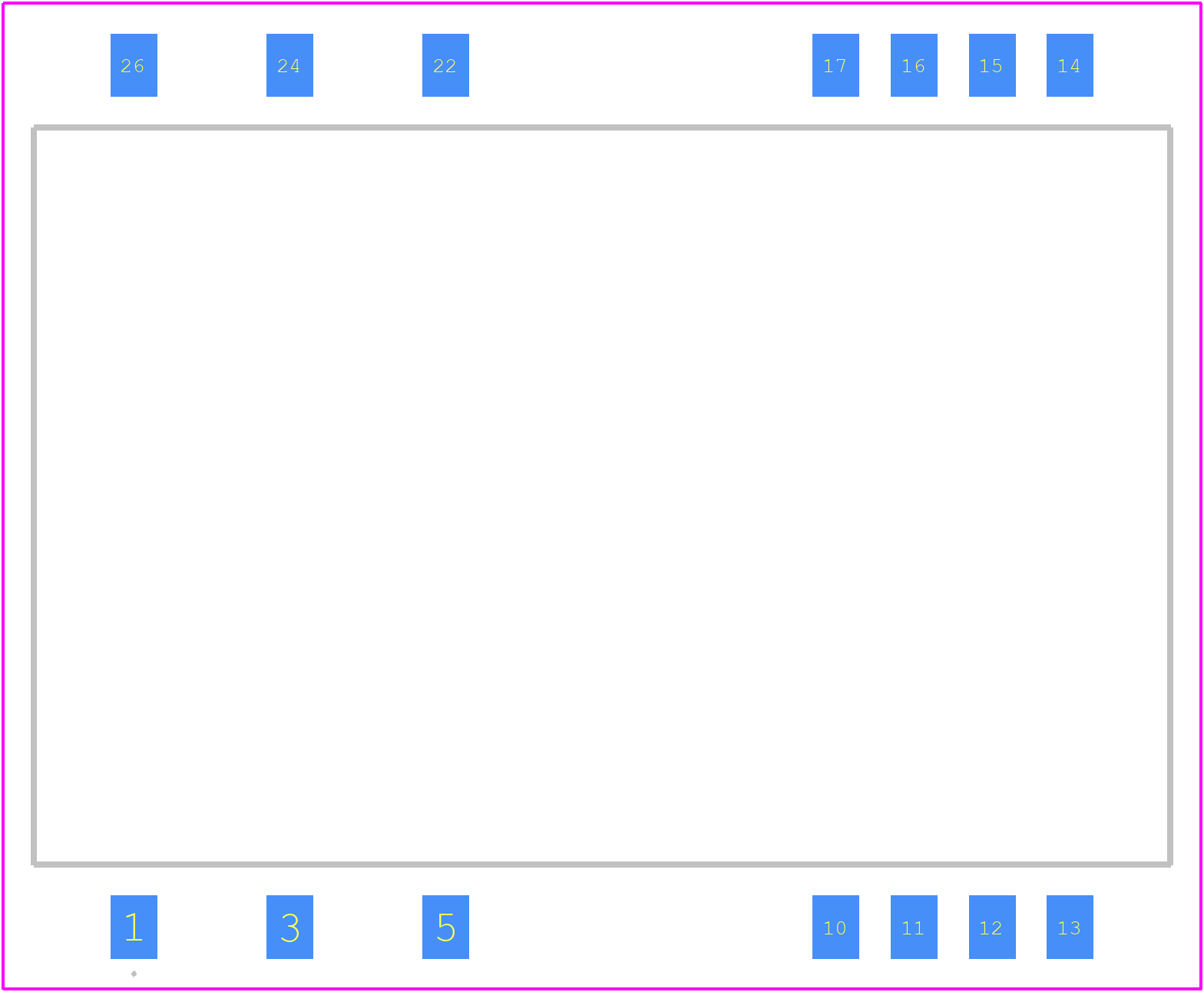

IRM-03-24S - Mean Well PCB footprint - Other - Other - IRM-03-24S-1
click to zoom

IRM-03-24S Details

  • Manufacturer Part Number:

    IRM-03-24S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-26/14

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    Mean Well

  • YTEOL:

    6.8

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CE, EAC, EN, UKCA, LPS

  • Efficiency (Main Output):

    80%

  • Input Voltage-Max:

    305 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-XDMA-G14

  • Length:

    37 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    0.125 A

  • Output Voltage-Max:

    24.6 V

  • Output Voltage-Min:

    23.4 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.08484 Vrms

  • Seated Height-Max:

    16.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    24 mm
