IRM-90-15 - Mean Well

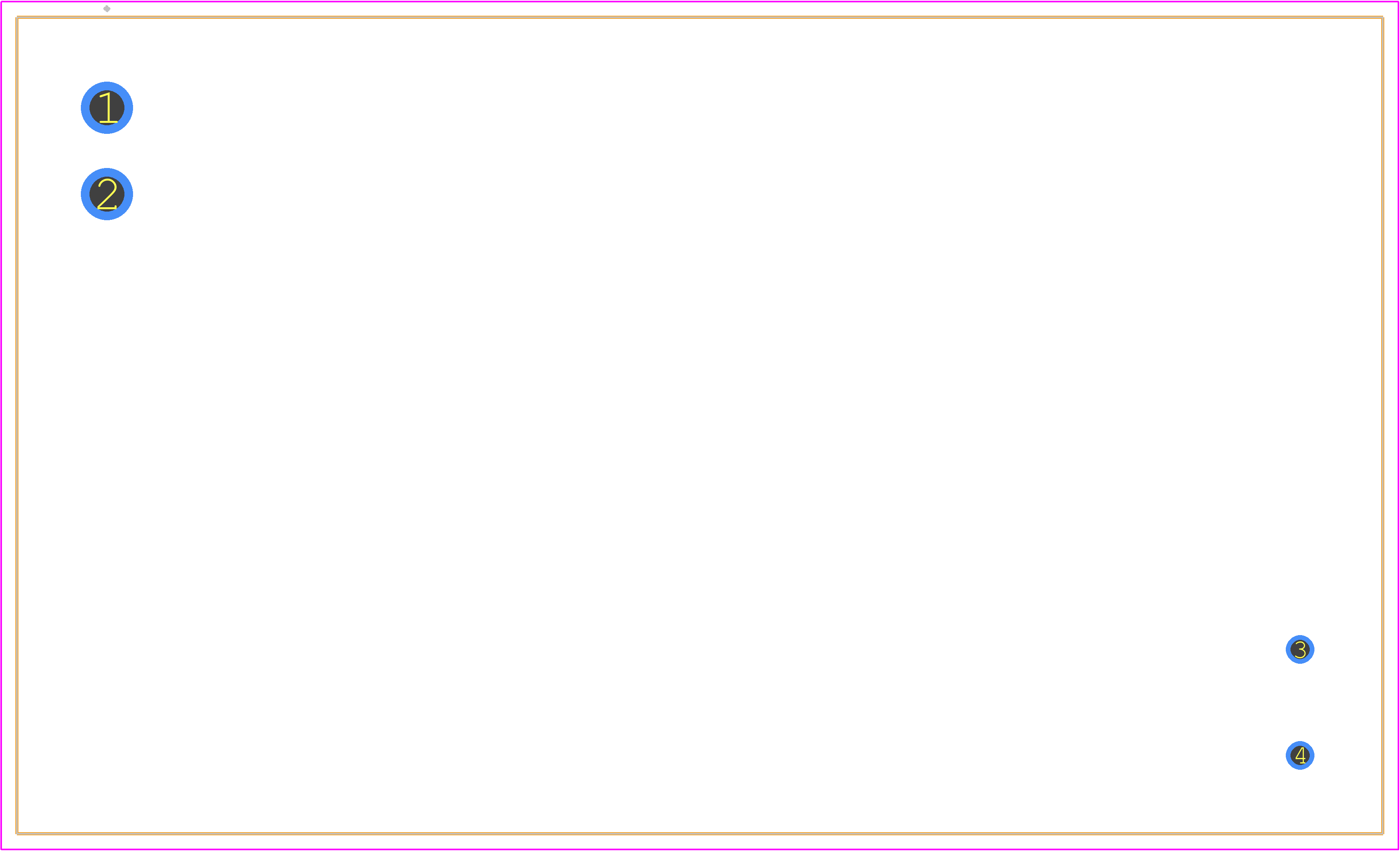

IRM-90-15 Details

• Manufacturer Part Number:

  IRM-90-15

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-4

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Date Of Intro:

  2020-10-15

• Manufacturer:

  Mean Well

• YTEOL:

  7

• Additional Feature:

  113-431 VDC INPUT ALSO AVAILABLE

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  EN, IEC, UL

• Efficiency (Main Output):

  92.5%

• Input Voltage-Max:

  305 V

• Input Voltage-Min:

  80 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-XDMA-P4

• Length:

  87 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -30 °C

• Output Current-Max:

  5.67 A

• Output Voltage-Max:

  15.3 V

• Output Voltage-Min:

  14.7 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,4LEAD,2.9

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER LOAD, OVER VOLTAGE, OVER TEMPERATURE

• Ripple Voltage (Main Out):

  0.05302 Vrms

• Screening Level:

  EN/IEC/UL 62368-1

• Seated Height-Max:

  30.5 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  85.05 W

• Trim/Adjustable Output:

  NO

• Width:

  52 mm
