IRS20124SPBF - Infineon

Description: Infineon IRS20124SPBF Dual MOSFET Power Driver, 1.2A, 10 → 18 V, SOIC 14-Pin

Download IRS20124SPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

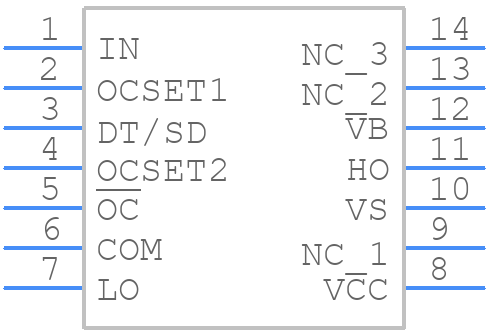

Symbol
IRS20124SPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRS20124SPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC S 14 PIN SURFACE MOUNT NARROW BODY
click to zoom
3D Models
IRS20124SPBF - Infineon - 3D model - Small Outline Packages - SOIC S 14 PIN SURFACE MOUNT NARROW BODY
click to zoom

IRS20124SPBF Details

  • Manufacturer Part Number:

    IRS20124SPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, MS-012AB, SOIC-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

IRS20124SPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRS20124SPBF is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • A recommended PCB layout for minimizing EMI includes using a solid ground plane, keeping high-frequency traces short and away from the edge of the board, and using shielding or filtering components as needed.
  • Yes, the IRS20124SPBF is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard.
  • Troubleshooting issues with the IRS20124SPBF can be done by checking the input voltage, output current, and thermal conditions, as well as verifying the PCB layout and component selection.
