A good PCB layout for the IRS2092PBF involves keeping the high-frequency switching nodes (e.g., drain-source voltage) away from sensitive analog circuits, using a solid ground plane, and minimizing loop areas to reduce EMI.
Proper cooling of the IRS2092PBF involves using a heat sink with a thermal resistance of ≤ 10°C/W, applying a thermal interface material (TIM) with a thermal conductivity of ≥ 5 W/m-K, and ensuring good airflow around the heat sink.
When selecting the gate resistor (RG) value for the IRS2092PBF, consider the switching frequency, gate-source voltage, and power losses. A higher RG value reduces power losses but increases switching time, while a lower RG value reduces switching time but increases power losses.
To protect the IRS2092PBF from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to regulate the input voltage, and consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits.
The internal bootstrap diode in the IRS2092PBF allows for a simpler circuit design, but it also means that the bootstrap capacitor must be sized correctly to ensure proper operation, and the circuit must be designed to handle the diode's voltage drop and reverse recovery time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS2092PBF Overview

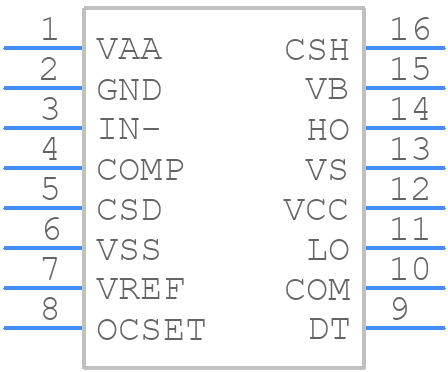

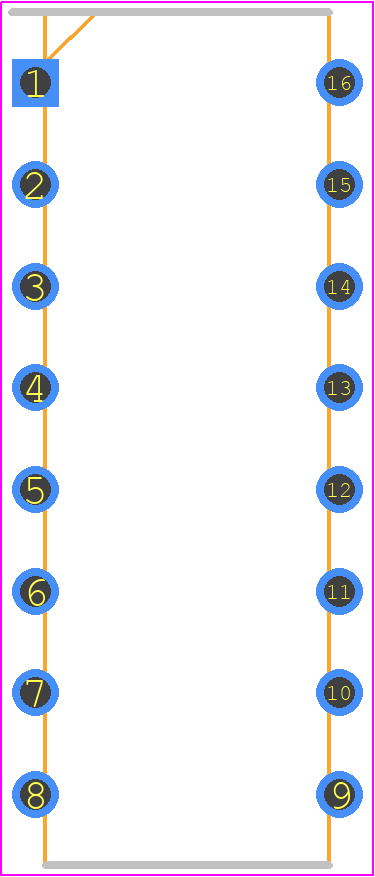

Use the download button to access the IRS2092PBF schematic symbol, PCB footprint, and 3D model.
