IRS20957STRPBF - Infineon

Description: INFINEON - IRS20957STRPBF - DIGITAL AUDIO DRIVER, NSOIC-16

Download IRS20957STRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

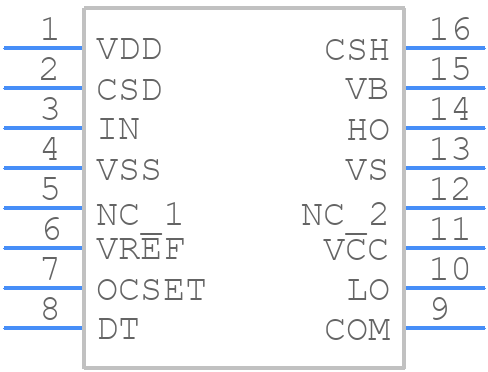

IRS20957STRPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRS20957STRPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - IRS20957STRPBF-1
click to zoom
3D Models
IRS20957STRPBF - Infineon - 3D model - Small Outline Packages - IRS20957STRPBF-1
click to zoom

IRS20957STRPBF Details

  • Manufacturer Part Number:

    IRS20957STRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Infineon Technologies AG

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.89 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

IRS20957STRPBF Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider using a thermistor or thermal sensor to monitor the device temperature.
  • The maximum allowed voltage on the bootstrap capacitor is typically 1.5 to 2 times the input voltage, but it's recommended to check the specific application notes and Infineon's guidelines for the IRS20957STRPBF.
  • Use a shielded layout, keep sensitive components away from the IRS20957STRPBF, and use EMI filters or common-mode chokes to reduce emissions. Also, follow Infineon's guidelines for EMI reduction.
  • A low-ESR ceramic capacitor with a value of 1-10uF is recommended, depending on the input voltage and current requirements. X5R or X7R dielectric capacitors are suitable for this application.
