IRS21084PBF - Infineon

Description: International Rectifier IRS21084PBF Dual MOSFET Power Driver, 0.6A 14-Pin, PDIP

Download IRS21084PBF Model

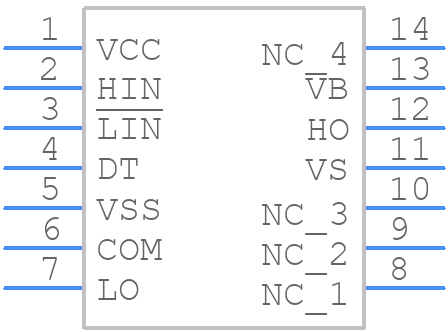

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

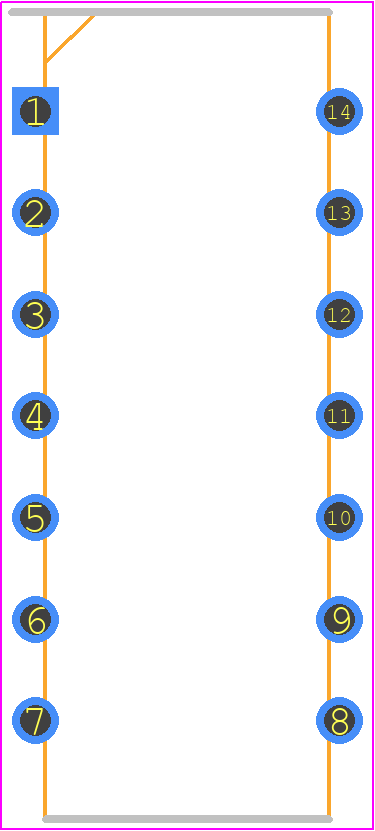

IRS21084PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - IRS21084PBF  14pin
click to zoom
3D Models
IRS21084PBF - Infineon  - 3D model - Dual-In-Line Packages - IRS21084PBF  14pin
click to zoom

IRS21084PBF Details

  • Manufacturer Part Number:

    IRS21084PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001AC, DIP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.305 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.28 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    7.62 mm

IRS21084PBF Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN-1071, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
  • The maximum allowable voltage on the VCC pin is 20V, as specified in the datasheet. Exceeding this voltage can damage the device. It's essential to ensure that the power supply voltage is within the recommended range of 12V to 15V.
  • Infineon provides a troubleshooting guide in the application note AN-1105, which covers common issues such as overcurrent protection, undervoltage lockout, and thermal shutdown. Additionally, engineers can use oscilloscopes and logic analyzers to debug the circuit and identify the root cause of the issue.
  • Yes, the IRS21084PBF can be used in a half-bridge configuration. However, it's essential to ensure that the device is properly configured and that the bootstrap capacitor is correctly sized to prevent voltage spikes and ensure reliable operation.
