IRS21084SPBF - Infineon

Description: Infineon IRS21084SPBF Dual Half Bridge MOSFET Power Driver 0.6A, 10 → 20 V, Non-Inverting, SOIC 14-Pin

Download IRS21084SPBF Model

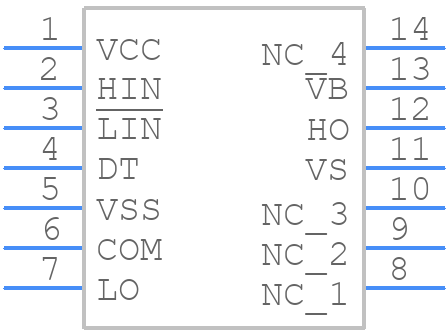

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IRS21084SPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead SOIC (narrow body)
click to zoom
3D Models
IRS21084SPBF - Infineon  - 3D model - Small Outline Packages - 14-Lead SOIC (narrow body)
click to zoom

IRS21084SPBF Details

  • Manufacturer Part Number:

    IRS21084SPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-012AB, SOIC-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.28 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    3.9 mm

IRS21084SPBF Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN-1071, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
  • The maximum allowable voltage on the VCC pin is 20V, as specified in the datasheet. Exceeding this voltage can damage the device. It's essential to ensure that the power supply voltage is within the recommended range of 12V to 15V.
  • Infineon provides a troubleshooting guide in the application note AN-1105, which covers common issues, such as output voltage errors, overcurrent protection, and thermal shutdown. The guide provides step-by-step procedures for identifying and resolving these issues.
  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR ceramic capacitor, such as an X7R or X5R type, is recommended to minimize voltage ripple and ensure stable operation.
