IRS21834PBF - Infineon

Description: Infineon IRS21834PBF Dual Half Bridge MOSFET Power Driver 2.3A, 10 → 20 V, Non-Inverting, PDIP 14-Pin

Download IRS21834PBF Model

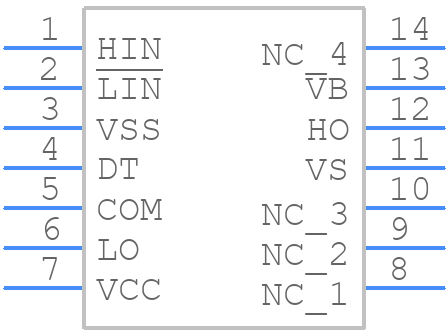

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

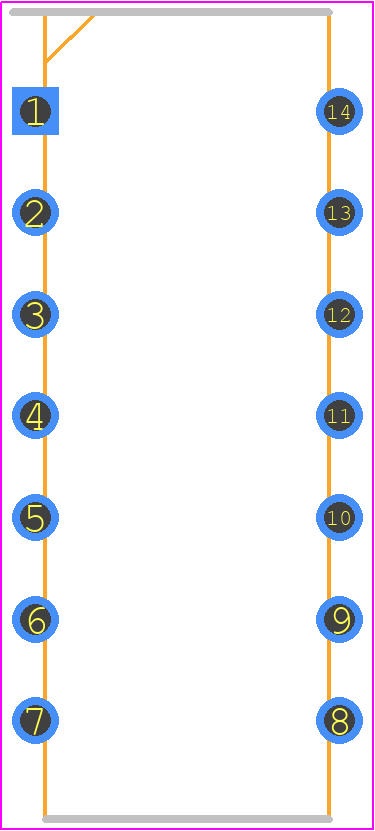

IRS21834PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-Lead PDIP
click to zoom
3D Models
IRS21834PBF - Infineon  - 3D model - Dual-In-Line Packages - 14-Lead PDIP
click to zoom

IRS21834PBF Details

  • Manufacturer Part Number:

    IRS21834PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.305 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    1.9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.33 µs

  • Turn-on Time:

    0.27 µs

  • Width:

    7.62 mm

IRS21834PBF Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN-978, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure proper airflow. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
  • The maximum allowed voltage on the VCC pin is 20V, as specified in the datasheet. Exceeding this voltage can damage the device. It's essential to ensure that the power supply voltage is within the recommended range of 12V to 15V.
  • To troubleshoot issues with the IRS21834PBF, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input signals, output voltage, and current. Use an oscilloscope to check for any unusual waveforms or voltage drops. If the issue persists, consult the datasheet and application notes or contact Infineon's technical support.
  • Yes, the IRS21834PBF is suitable for high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it's essential to follow the recommended design guidelines, ensure proper testing and validation, and comply with relevant industry standards and regulations.
