IRS2184PBF - Infineon

Description: Gate Drivers Hlf Brdg Drvr Soft Trn On Sngl 400ns

Download IRS2184PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

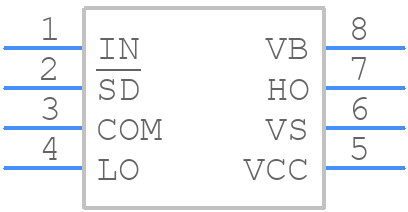

Symbol
IRS2184PBF - Infineon - PCB symbol
click to zoom

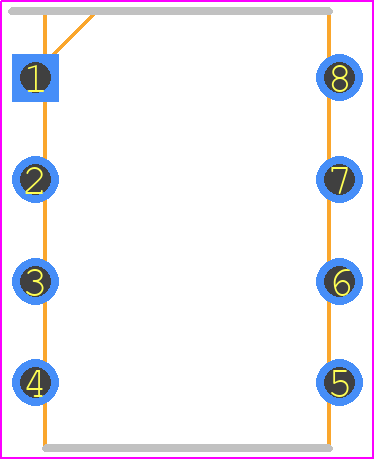

PCB Footprints
IRS2184PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 Lead DIP
click to zoom
3D Models
IRS2184PBF - Infineon - 3D model - Dual-In-Line Packages - 8 Lead DIP
click to zoom

IRS2184PBF Details

  • Manufacturer Part Number:

    IRS2184PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.88 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    2.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.4 µs

  • Turn-on Time:

    0.9 µs

  • Width:

    7.62 mm

IRS2184PBF Frequently Asked Questions (FAQs)

  • The IRS2184PBF can operate up to 500 kHz, but the recommended operating frequency is up to 200 kHz for optimal performance.
  • Proper thermal management can be achieved by providing a heat sink, ensuring good airflow, and keeping the device away from heat sources. The maximum junction temperature is 150°C.
  • A good layout and routing practice is to keep the high-current paths short and wide, use a solid ground plane, and keep the sensitive analog signals away from the high-power switching nodes.
  • Overvoltage protection can be achieved using a voltage regulator or a zener diode, while overcurrent protection can be achieved using a current sense resistor and a comparator or an overcurrent protection IC.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of 10-22 μF, while the output capacitor should be a low-ESR electrolytic capacitor with a value of 100-220 μF.
