IRS21851SPBF - Infineon

Description: International Rectifier IRS21851SPBF, MOSFET Power Driver 4A, 10 → 20 V, Non-Inverting, 8-Pin SOIC

Download IRS21851SPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

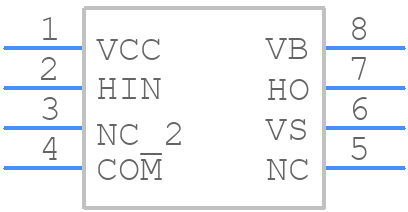

Symbol
IRS21851SPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRS21851SPBF - Infineon PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
IRS21851SPBF - Infineon - 3D model - Other - SOIC127P600X175-8N
click to zoom

IRS21851SPBF Details

  • Manufacturer Part Number:

    IRS21851SPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.21 µs

  • Turn-on Time:

    0.21 µs

  • Width:

    3.9 mm

IRS21851SPBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the IRS21851SPBF is 500 kHz.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, and to consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The recommended dead time for the IRS21851SPBF is typically in the range of 100-200 ns, but this may vary depending on the specific application and requirements.
  • To protect the IRS21851SPBF from overvoltage and undervoltage conditions, it is recommended to use voltage regulators, TVS diodes, or other overvoltage protection devices, and to ensure that the input voltage is within the recommended operating range.
  • The maximum allowable voltage stress on the IRS21851SPBF is 600 V, but this may vary depending on the specific application and requirements.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

IRS21851SPBF Overview

Use the download button to access the IRS21851SPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS21, or try a keyword search, such as MOSFET Drivers
