IRSM836-024MATR - Infineon

Description: Motor/Motion/Ignition Controllers & Drivers 2A 250V Intg Pwr Mod IPM 3.3V 1500Vrms

Download IRSM836-024MATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

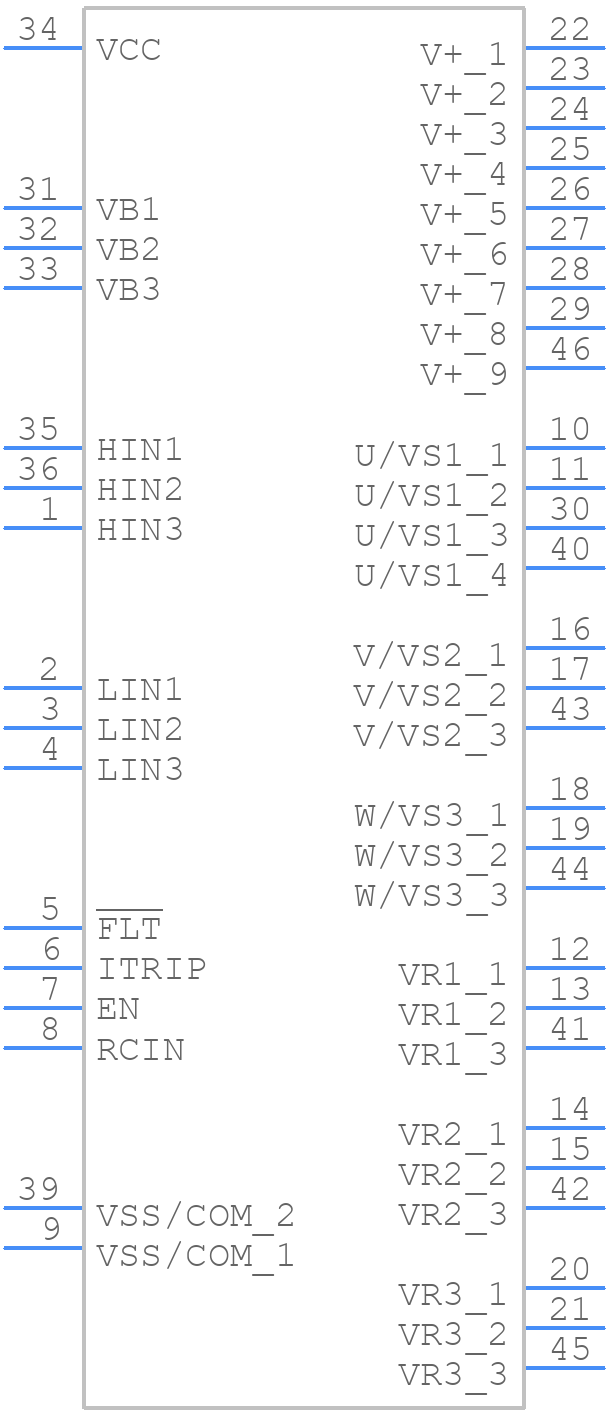

Symbol
IRSM836-024MATR - Infineon - PCB symbol
click to zoom

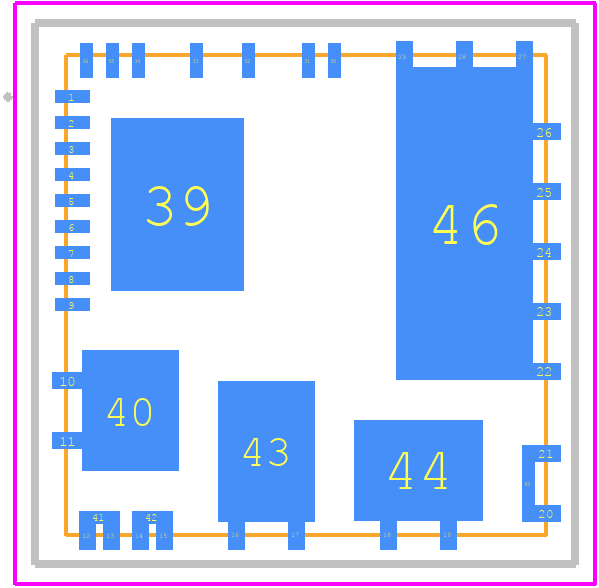

PCB Footprints
IRSM836-024MATR - Infineon PCB footprint - Other - Other - QFN 12x12 (QFN 12X12 36L)
click to zoom
3D Models
IRSM836-024MATR - Infineon - 3D model - Other - QFN 12x12 (QFN 12X12 36L)
click to zoom

IRSM836-024MATR Details

  • Manufacturer Part Number:

    IRSM836-024MATR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    36

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC36(UNSPEC)

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD
