IS25LP032-JBLE - Integrated Silicon Solution Inc.

Description: 8-pin SOIC 208mil

Download IS25LP032-JBLE Model

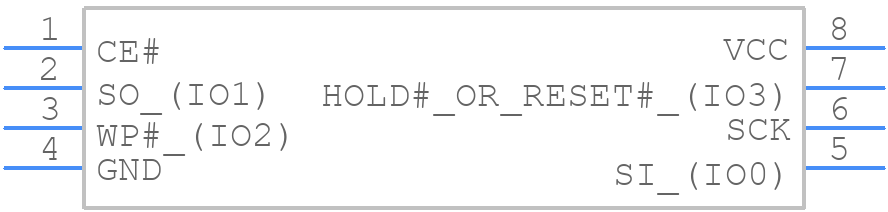

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IS25LP032-JBLE - Integrated Silicon Solution Inc. PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN JEDEC 208MIL BROAD SMALL OUTLINE INTEGRATED CIRCUIT
click to zoom
3D Models
IS25LP032-JBLE - Integrated Silicon Solution Inc.  - 3D model - Small Outline Packages - 8-PIN JEDEC 208MIL BROAD SMALL OUTLINE INTEGRATED CIRCUIT
click to zoom

IS25LP032-JBLE Details

  • Manufacturer Part Number:

    IS25LP032-JBLE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.208 INCH, SOIC-8

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Integrated Silicon Solution Inc

  • YTEOL:

    5.5

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    5.28 mm

IS25LP032-JBLE Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IS25LP032-JBLE is -40°C to 85°C.
  • The hold pin (HOLD#) should be pulled high during power-up and power-down to prevent unwanted writes to the device.
  • The recommended clock frequency for the IS25LP032-JBLE is up to 104 MHz.
  • To ensure data integrity during power-down, the device should be write-protected by setting the write-protect pin (WP#) high or by using the software write-protect feature.
  • The deep power-down mode is used to reduce power consumption to a minimum when the device is not in use. In this mode, the device is in a low-power state and can only be awakened by a hardware reset or a power-on reset.
