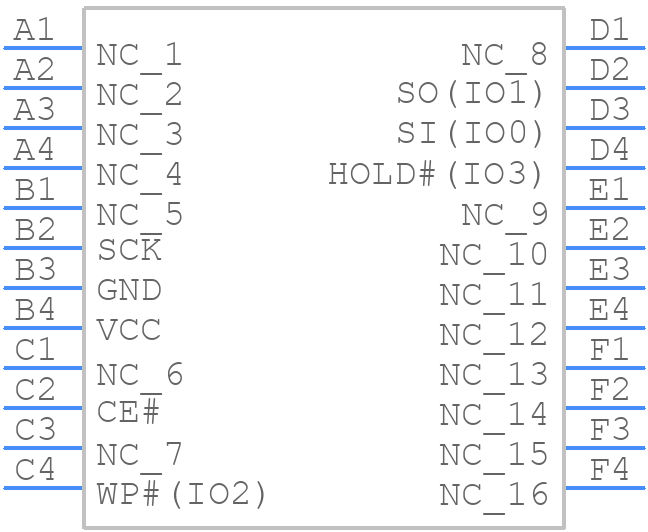

IS25LP128-JGLE - Integrated Silicon Solution Inc.

IS25LP128-JGLE Details

• Manufacturer Part Number:

  IS25LP128-JGLE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TFBGA-24

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Integrated Silicon Solution Inc

• YTEOL:

  5.7

• Clock Frequency-Max (fCLK):

  133 MHz

• JESD-30 Code:

  R-PBGA-B24

• JESD-609 Code:

  e1

• Length:

  8 mm

• Memory Density:

  134217728 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  24

• Number of Words:

  16777216 words

• Number of Words Code:

  16000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  16MX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TBGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, THIN PROFILE

• Parallel/Serial:

  SERIAL

• Programming Voltage:

  3 V

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  6 mm
