The recommended PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the junction temperature below the maximum rating.
The recommended drive circuit for the LED involves using a series resistor to limit the current, and a bypass capacitor to filter out noise. A dedicated LED driver IC can also be used to provide a constant current source and ensure reliable operation.
To troubleshoot issues with the device not turning on, check the power supply voltage, ensure that the enable pin is properly biased, and verify that the input voltage is within the recommended range. Also, check for any short circuits or open circuits on the PCB.
The maximum allowable voltage on the input pins is 5.5V, as specified in the datasheet. Exceeding this voltage can cause damage to the device or affect its reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IS31AP2006-DLS2-TR Overview

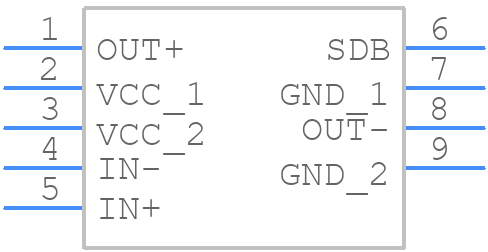

Use the download button to access the IS31AP2006-DLS2-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IS31A,
or try a keyword search, such as Audio/Video Amplifiers
