A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the IC to the ground plane. This helps to dissipate heat efficiently.
To ensure consistent LED current across all channels, make sure to use a single resistor for all channels, and ensure that the resistor value is chosen based on the maximum current required by the LEDs. Also, use a high-quality, low-tolerance resistor to minimize variations.
The maximum frequency for the PWM input signal is typically limited by the internal clock frequency of the IC, which is around 1 MHz. However, it's recommended to limit the PWM frequency to around 100 kHz to ensure reliable operation.
The thermal shutdown feature is designed to protect the IC from overheating. If the IC exceeds the maximum junction temperature, it will shut down. To handle this, ensure good thermal design, use a heat sink if necessary, and implement a thermal monitoring system to detect and respond to thermal shutdown events.
The recommended input voltage range for the IS31AP4991A-SLS2-TR is 6.5V to 30V. Operating the IC outside of this range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IS31AP4991A-SLS2-TR Overview

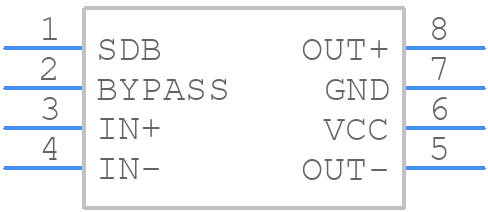

Use the download button to access the IS31AP4991A-SLS2-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IS31A,
or try a keyword search, such as Audio/Video Amplifiers
