IS31FL3218-GRLS2 - Lumissil Microsystems

Description: IC LED DRIVER 18CH CC PWM 24SOIC

Download IS31FL3218-GRLS2 Model

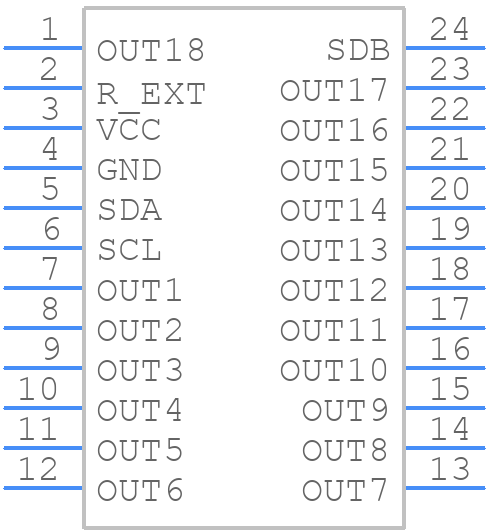

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IS31FL3218-GRLS2 - Lumissil Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - SOP-24
click to zoom
3D Models
IS31FL3218-GRLS2 - Lumissil Microsystems  - 3D model - Small Outline Packages - SOP-24
click to zoom

IS31FL3218-GRLS2 Details

  • Manufacturer Part Number:

    IS31FL3218-GRLS2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Lumissil Microsystems

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    18

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • fmax-Min:

    0.4 MHz

IS31FL3218-GRLS2 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable communication, make sure to use the correct communication protocol (SPI or I2C), set the correct clock frequency, and use pull-up resistors on the data lines. Also, ensure that the microcontroller and the IS31FL3218-GRLS2 are properly decoupled and have a common ground.
  • The maximum current that can be sourced/sunk by the IS31FL3218-GRLS2 is 20mA per channel. However, it's recommended to limit the current to 10mA per channel to ensure reliable operation and to prevent overheating.
  • To ensure accurate and stable LED current, use an external resistor to set the current, and consider using a dedicated current sense resistor to monitor the current. Also, ensure that the power supply is stable and has low noise.
  • The recommended storage temperature range for the IS31FL3218-GRLS2 is -40°C to 125°C, and the recommended storage humidity range is 20% to 80% relative humidity.
