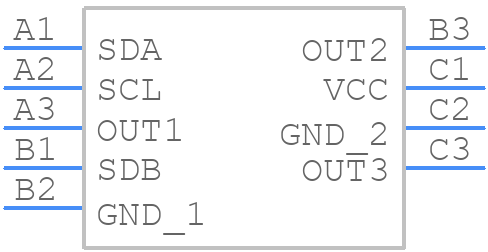

IS31FL3293-UTLS4-TR - Lumissil Microsystems

IS31FL3293-UTLS4-TR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  The recommended PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
• How do I ensure reliable operation in high-humidity environments?
  To ensure reliable operation in high-humidity environments, it is recommended to apply a conformal coating to the PCB, use a moisture-resistant package, and follow proper storage and handling procedures to prevent moisture ingress.
• What is the maximum allowable voltage on the EN pin?
  The maximum allowable voltage on the EN pin is 6V, although the recommended voltage is 3.3V or 5V. Exceeding this voltage may damage the device.
• Can I use this device in a automotive application?
  The IS31FL3293-UTLS4-TR is an industrial-grade device, but it is not AEC-Q100 qualified. If you need to use it in an automotive application, you should contact Lumissil Microsystems for additional information and guidance.
• How do I troubleshoot issues with the device not turning on?
  To troubleshoot issues with the device not turning on, check the power supply voltage, ensure the EN pin is properly biased, and verify that the device is not in a thermal shutdown state. Also, check for any damage to the device or PCB.
