IS31FL3733B-TQLS4-TR - Lumissil Microsystems

Description: LED Display Drivers 1216 Dot Matrix LED Drive with individual auto breath function, eTQFP-48 (9.0mm x 9.0mm)

Download IS31FL3733B-TQLS4-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

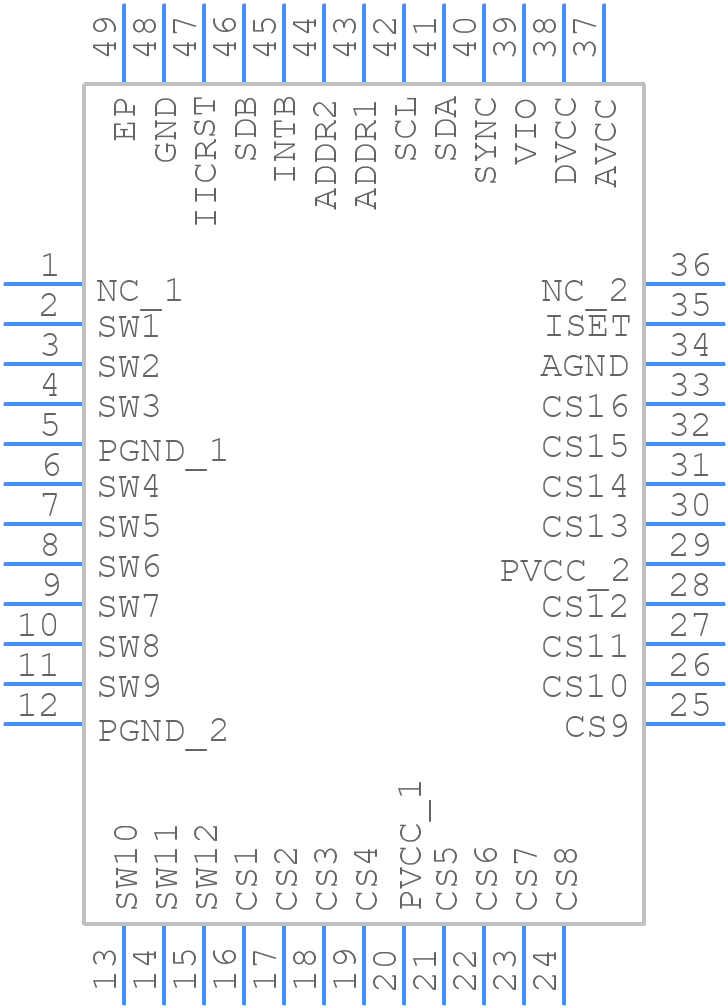

IS31FL3733B-TQLS4-TR - Lumissil Microsystems - PCB symbol
click to zoom
PCB Footprints

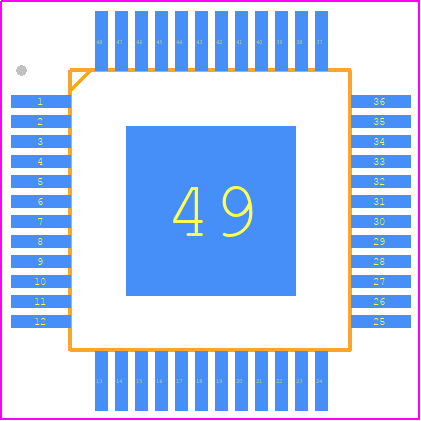

IS31FL3733B-TQLS4-TR - Lumissil Microsystems PCB footprint - Quad Flat Packages - Quad Flat Packages - IS31FL3733B-TQLS4-TR
click to zoom
3D Models
IS31FL3733B-TQLS4-TR - Lumissil Microsystems - 3D model - Quad Flat Packages - IS31FL3733B-TQLS4-TR
click to zoom

IS31FL3733B-TQLS4-TR Details

  • Manufacturer Part Number:

    IS31FL3733B-TQLS4-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Lumissil Microsystems

  • YTEOL:

    6.65

  • Display Mode:

    DOT MATRIX

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQFP-G28

  • Length:

    7 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    192

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    HQFP48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

IS31FL3733B-TQLS4-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the IS31FL3733B-TQLS4-TR can be found in the application note AN-1015 provided by Lumissil Microsystems. It provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The IS31FL3733B-TQLS4-TR can be programmed using the I2C interface. Lumissil Microsystems provides a programming guide and software development kit (SDK) that includes APIs and example code for popular microcontrollers. Additionally, the datasheet provides a detailed description of the register map and programming sequence.
  • The maximum current rating for the IS31FL3733B-TQLS4-TR is 30mA per channel. However, it's recommended to derate the current to 20mA per channel for reliable operation and to prevent overheating.
  • No, the IS31FL3733B-TQLS4-TR is designed to operate with a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance. If a 5V power supply is required, a voltage regulator or level shifter should be used to step down the voltage to 3.3V.
  • Lumissil Microsystems provides a troubleshooting guide that covers common issues and their solutions. Additionally, the datasheet provides a detailed description of the device's behavior and error detection mechanisms. Engineers can also contact Lumissil Microsystems' technical support team for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IS31FL3733B-TQLS4-TR Overview

Use the download button to access the IS31FL3733B-TQLS4-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IS31F, or try a keyword search, such as Display Drivers
