The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A 4-layer PCB with a solid ground plane and a thermal via under the device is also recommended.
To ensure proper soldering and avoid solder bridging, use a soldering iron with a fine tip, and apply a small amount of solder paste to the pads. Use a reflow oven with a controlled temperature profile, and inspect the solder joints under a microscope to ensure they are clean and free of bridging.
The recommended input capacitor value is 10uF to 22uF, and a low-ESR ceramic capacitor such as X5R or X7R is recommended. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
To troubleshoot issues with the device's output current or voltage, check the input voltage and current, ensure the device is properly soldered and mounted, and verify that the output capacitor is properly sized and connected. Use an oscilloscope to measure the output voltage and current waveforms, and consult the datasheet for troubleshooting guidelines.
The device has a soft-start feature that ramps up the output voltage during power-up, and a shutdown mode that reduces the quiescent current during power-down. The device also has an undervoltage lockout (UVLO) feature that prevents the device from operating below a certain input voltage threshold.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IS31LT3117-ZLS4-TR Overview

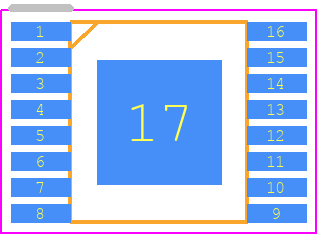

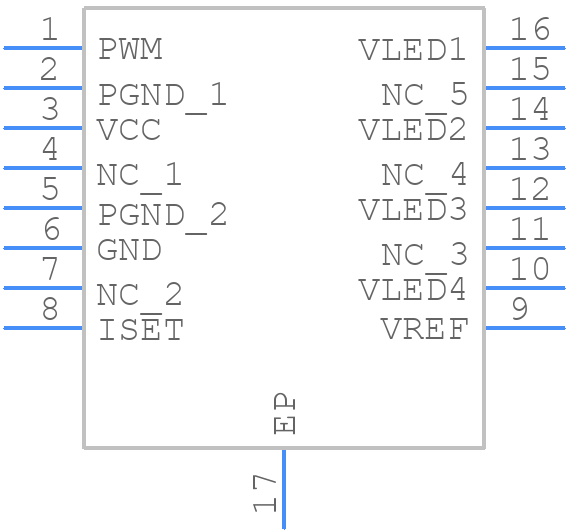

Use the download button to access the IS31LT3117-ZLS4-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IS31L,
or try a keyword search, such as Display Drivers
