XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
To ensure the input voltage is within the specified range, use a voltage regulator or a DC-DC converter to regulate the input voltage. Additionally, consider using input voltage monitoring and protection circuits to prevent damage from overvoltage or undervoltage conditions.
The ISA0305 can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillation in the output voltage. If a higher capacitive load is required, consider adding an output capacitor with a series resistor to limit the inrush current.
The ISA0305 has an internal overcurrent protection feature that limits the output current to 1.5 times the rated current. To implement additional overcurrent protection, consider using an external current sense resistor and a comparator to monitor the output current. When the current exceeds the set threshold, the comparator can trigger a shutdown signal to the module.
To minimize EMI, XP Power recommends using a pi-filter configuration with a common-mode choke, X-capacitors, and Y-capacitors. The filter components should be selected based on the specific application's frequency range and EMI requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISA0305 Overview

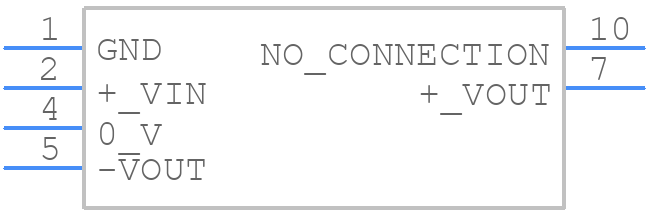

Use the download button to access the ISA0305 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISA03,
or try a keyword search, such as Power Supply Modules
