ISA0512 footprint, schematic symbol and 3D model by XP POWER

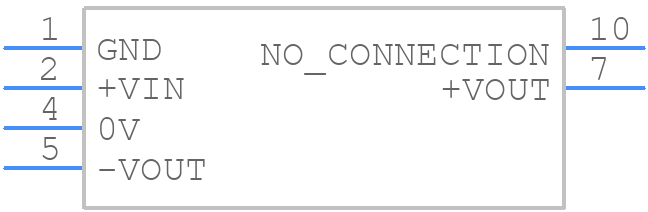

Symbol

click to zoom

PCB Footprints

ISA0512 - XP POWER PCB footprint - Other - Other - ISA2405

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISA0512
Part Number ISA0512
Manufacturer XP POWER
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - ISA2405
Released Date Jul 8, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ISA0512 Details

Manufacturer Part Number:
ISA0512
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SMD-10/6
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
0
Additional Feature:
-12V ADDITIONAL OUTPUT AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, UKCA
Efficiency (Main Output):
81%
Input Voltage-Max:
5.5 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-XDMA-G6
Length:
15.24 mm
Line Regulation-Max:
1.2%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.042 A
Output Voltage-Max:
12.36 V
Output Voltage-Min:
11.64 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Equivalence Code:
MODULE,6/10LEAD,.44
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
245
Protections:
SHORT CIRCUIT
Ripple Voltage (Main Out):
0.021 Vrms
Seated Height-Max:
7.75 mm
Surface Mount:
YES
Technology:
HYBRID
Terminal Form:
GULL WING
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Total Power Output-Max:
1 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.002 s
Width:
8.3 mm

ISA0512 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat effectively. A minimum of 1 square inch of copper is recommended, and the use of thermal vias can further improve heat dissipation.
To ensure reliable start-up, XP Power recommends a soft-start circuit to limit the inrush current during power-on. A resistive-capacitive (RC) network can be used to slow down the voltage rise at the input, reducing the stress on the device and improving reliability.
The maximum allowed capacitance on the output of the ISA0512 is 10uF. Exceeding this value can cause instability and affect the reliability of the device. It's essential to ensure that the output capacitance is within the recommended range to maintain stable operation.
The ISA0512 is rated for operation up to 85°C ambient temperature. However, derating is required for temperatures above 70°C. XP Power recommends consulting the datasheet for derating curves and ensuring that the device is properly heat-sinked to maintain reliable operation in high-temperature environments.
To protect the ISA0512 from input voltage transients and surges, XP Power recommends using a transient voltage suppressor (TVS) diode or a metal-oxide varistor (MOV) in parallel with the input. This will help to clamp the input voltage and prevent damage to the device.

Trust Checks

Expert Contribution

System Verified

Community Approved

ISA0512 Overview

Use the download button to access the ISA0512 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ISA05, or try a keyword search, such as Power Supply Modules
