ISC027N10NM6ATMA1 - Infineon

Description: N-Channel MOSFET VDS=100V, RDS(on),max=2.7mΩ, ID=192A, Qoss=107nC, PG-TDSON-8 FL.

Download ISC027N10NM6ATMA1 Model

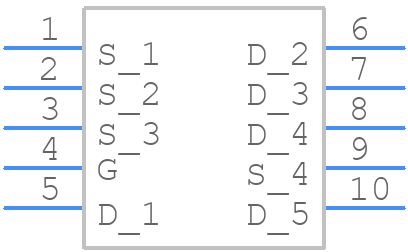

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISC027N10NM6ATMA1 - Infineon PCB footprint - Other - Other - ISC027N10NM6ATMA1
click to zoom
3D Models
ISC027N10NM6ATMA1 - Infineon  - 3D model - Other - ISC027N10NM6ATMA1
click to zoom

ISC027N10NM6ATMA1 Details

  • Manufacturer Part Number:

    ISC027N10NM6ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    1057 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    192 A

  • Drain-source On Resistance-Max:

    0.0027 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    24 pF

  • JESD-30 Code:

    R-PDSO-F8

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    217 W

  • Pulsed Drain Current-Max (IDM):

    768 A

  • Reference Standard:

    IEC-61249-2-21

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

ISC027N10NM6ATMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and pad design to ensure optimal thermal performance.
  • Infineon recommends using a gate driver with a peak current capability of at least 2A and a voltage rating that matches the MOSFET's gate-source voltage. The driver should also have a low output impedance to ensure fast switching times.
  • The maximum allowed junction temperature for the ISC027N10NM6ATMA1 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • Yes, the ISC027N10NM6ATMA1 is suitable for high-frequency switching applications up to 1 MHz. However, the user should ensure that the gate driver and PCB layout are optimized for high-frequency operation to minimize losses and ringing.
  • The internal diode can be handled by using a freewheeling diode or a Schottky diode in parallel with the MOSFET. This helps to reduce voltage spikes and ringing during switching. The user should also ensure that the gate driver is capable of handling the diode's reverse recovery characteristics.
