The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
To optimize power consumption, use the device's power-down mode, reduce the clock frequency, and minimize the number of active circuits. Additionally, consider using a low-dropout regulator (LDO) to reduce power consumption.
The maximum allowed capacitance for the VCC pin is 10uF. Exceeding this value may cause power-on reset issues or affect the device's overall performance.
Yes, the ISD1760SY has built-in noise tolerance features, such as hysteresis and slew-rate control, to minimize the impact of noise on the device's operation. However, it's still recommended to follow proper PCB design and layout guidelines to minimize noise coupling.
To ensure reliable data retention, follow the recommended programming and erasing procedures, and avoid exposing the device to extreme temperatures or voltage fluctuations. Additionally, use the device's built-in error correction mechanisms to detect and correct data errors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISD1760SY Overview

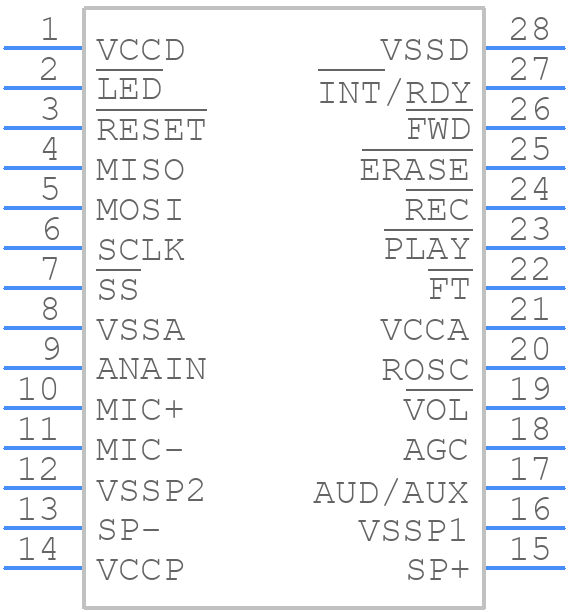

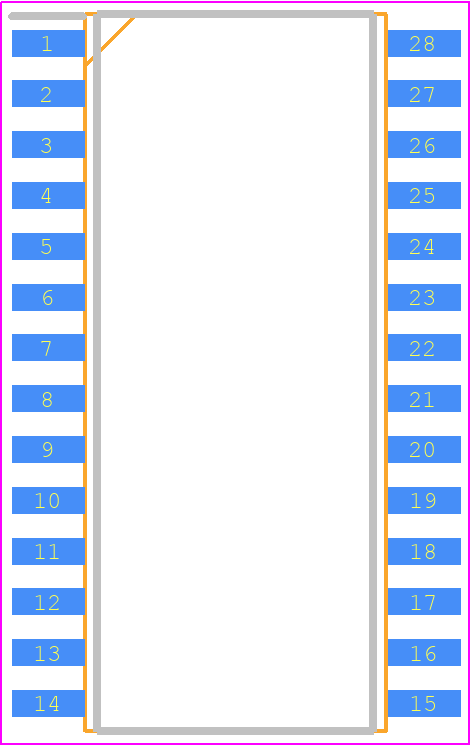

Use the download button to access the ISD1760SY schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISD17,
or try a keyword search, such as Audio Synthesizer ICs
