Description:The ISL12022MA device is a low power real time clock (RTC) with an embedded temperature sensor and crystal. Device functions include oscillator compensation, clock/calendar, power fail and low battery monitors, brownout indicator, one-time, periodic or polled alarms, intelligent battery backup switching, Battery Reseal™ function and 128 bytes of battery-backed user SRAM. Backup battery current draw is less than 1. 6µA over the temperature range. The device is offered in a 20 Ld SOIC module that contains the
A good PCB layout for the ISL12022MAIBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to place the device close to the crystal oscillator and to use a low-ESR capacitor for the VDD pin.
To ensure the accuracy of the clock output, it's essential to use a high-quality crystal oscillator with a low equivalent series resistance (ESR) and to follow the recommended PCB layout guidelines. Additionally, the device should be operated within its specified temperature range, and the power supply voltage should be stable and noise-free.
The maximum frequency of the clock output of the ISL12022MAIBZ is 32.768 kHz, which is the typical frequency of a watch crystal oscillator.
Yes, the ISL12022MAIBZ is suitable for use in battery-powered devices due to its low power consumption and low voltage operation. However, it's essential to consider the device's power consumption and battery life requirements when designing the system.
To troubleshoot issues with the ISL12022MAIBZ, start by verifying the power supply voltage and clock input signal. Check the device's pin connections and PCB layout for any errors or noise issues. Use an oscilloscope to verify the clock output signal and check for any signs of noise or jitter. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL12022MAIBZ Overview

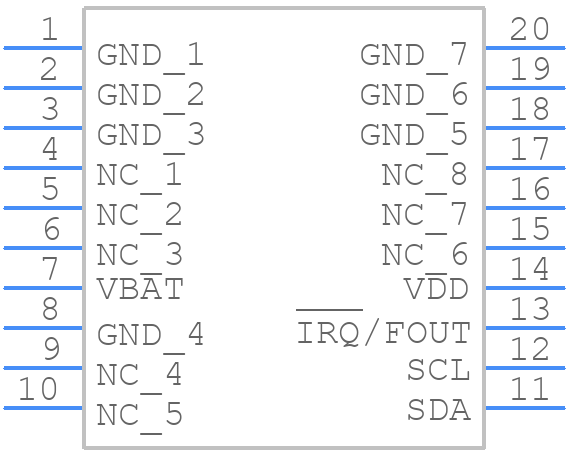

Use the download button to access the ISL12022MAIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL12,
or try a keyword search, such as Timers or RTCs
