ISL12022MIBZ-TR5421 - Renesas Electronics

Description: The ISL12022MR5421 device is a low power real time clock (RTC) with an embedded temperature sensor and crystal. Device functions include oscillator compensation, clock/calendar, power fail and low battery monitors, brownout indicator, one-time, periodic or polled alarms, intelligent battery backup switching, Battery Reseal™ function and 128 bytes of battery-backed user SRAM. The device is offered in a 20 Ld SOIC module that contains the RTC and an embedded 32. 768kHz quartz crystal. The calibrated oscillato

Download ISL12022MIBZ-TR5421 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

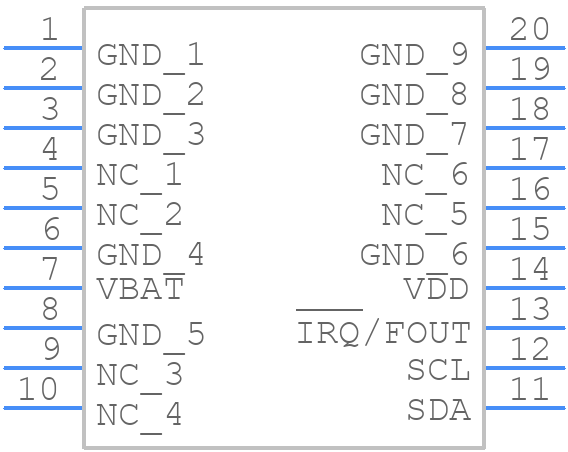

Symbol
ISL12022MIBZ-TR5421 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL12022MIBZ-TR5421 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M20.3+
click to zoom
3D Models
ISL12022MIBZ-TR5421 - Renesas Electronics - 3D model - Small Outline Packages - M20.3+
click to zoom

ISL12022MIBZ-TR5421 Details

  • Manufacturer Part Number:

    ISL12022MIBZ-TR5421

  • Brand Name:

    Renesas

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICW

  • Pin Count:

    20

  • Manufacturer Package Code:

    M20.3

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

ISL12022MIBZ-TR5421 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL12022MIBZ-TR5421 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to place the device close to the crystal oscillator and use a low-ESR capacitor for the VDD pin.
  • To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low ppm tolerance, maintain a stable power supply voltage, and minimize temperature variations. Additionally, the device should be calibrated periodically to account for any drift in the RTC.
  • The maximum frequency of the clock output of the ISL12022MIBZ-TR5421 is 32.768 kHz, which is the typical frequency used for real-time clock applications.
  • Yes, the ISL12022MIBZ-TR5421 is suitable for battery-powered devices due to its low power consumption. The device has a typical current consumption of 1.5 μA in the timekeeping mode, making it suitable for battery-powered applications.
  • The ISL12022MIBZ-TR5421 can be interfaced with a microcontroller using the I2C bus. The device has a 7-bit slave address, and the microcontroller can read and write data to the device using the I2C protocol.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL12022MIBZ-TR5421 Overview

Use the download button to access the ISL12022MIBZ-TR5421 schematic symbol, PCB footprint, and 3D model.
