Description:The ISL12022M device is a low power real time clock (RTC) with an embedded temperature sensor and crystal. Device functions include oscillator compensation, clock/calendar, power fail and low battery monitors, brownout indicator, one-time, periodic or polled alarms, intelligent battery backup switching, Battery Reseal™ function and 128 bytes of battery-backed user SRAM. Backup battery current draw is less than 1. 6µA over the temperature range. The device is offered in a 20 Ld SOIC module that contains the
A good PCB layout for the ISL12022MIBZ involves keeping the crystal oscillator circuitry close to the IC, using a ground plane to reduce noise, and minimizing the length of the clock signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low ppm tolerance, maintain a stable power supply voltage, and minimize temperature variations. Additionally, the RTC should be calibrated periodically to account for any deviations.
The ISL12022MIBZ is rated for operation from -40°C to +85°C. However, the device's accuracy and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
The ISL12022MIBZ can be interfaced with a microcontroller using a serial communication protocol such as I2C or SPI. The device's registers can be accessed using the microcontroller's I2C or SPI peripheral, and the data can be transferred using a serial communication protocol.
The power consumption of the ISL12022MIBZ depends on the operating mode and the frequency of the clock signal. In typical operating conditions, the device consumes around 1.5 μA in the timekeeping mode and around 10 μA in the oscillator mode.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL12022MIBZ Overview

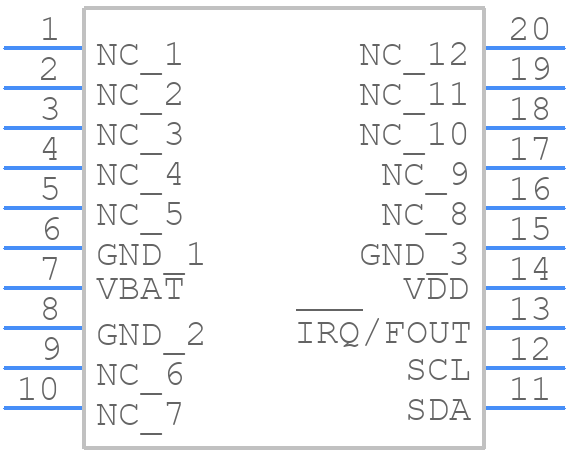

Use the download button to access the ISL12022MIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL12,
or try a keyword search, such as Timers or RTCs
