Description:The ISL12022MR5421 device is a low power real time clock (RTC) with an embedded temperature sensor and crystal. Device functions include oscillator compensation, clock/calendar, power fail and low battery monitors, brownout indicator, one-time, periodic or polled alarms, intelligent battery backup switching, Battery Reseal™ function and 128 bytes of battery-backed user SRAM. The device is offered in a 20 Ld SOIC module that contains the RTC and an embedded 32. 768kHz quartz crystal. The calibrated oscillato
Renesas provides a recommended PCB layout guide in their application note AN1443, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The ISL12022MIBZR5421 has a built-in crystal oscillator circuit, and the startup time can be affected by the crystal quality, load capacitance, and circuit layout. Renesas recommends following the crystal oscillator design guidelines in the datasheet and application notes, and using a high-quality crystal with a suitable load capacitance to ensure reliable operation.
The ISL12022MIBZR5421 has an operating temperature range of -40°C to +85°C. As the temperature increases, the device's performance may be affected, including increased power consumption, reduced accuracy, and potential reliability issues. Renesas recommends following the thermal management guidelines in the datasheet and application notes to ensure reliable operation within the specified temperature range.
Renesas recommends using an external POR circuit, such as a voltage supervisor or a reset IC, to ensure a reliable power-on reset. The POR circuit should be designed to detect the power supply voltage and generate a reset signal to the ISL12022MIBZR5421 when the voltage is below a certain threshold. Renesas provides guidelines for POR circuit design in their application notes.
The ISL12022MIBZR5421 is a high-frequency device, and proper EMI and EMC design considerations are essential to minimize electromagnetic interference. Renesas recommends following the EMI and EMC guidelines in the datasheet and application notes, including using proper shielding, grounding, and layout techniques, as well as implementing EMI filters and shielding components as needed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL12022MIBZR5421 Overview

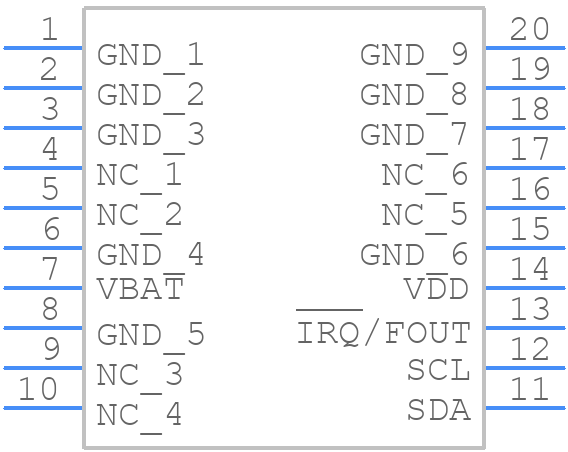

Use the download button to access the ISL12022MIBZR5421 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL12,
or try a keyword search, such as Timers or RTCs
