Description:The ISL12024 device is a micro-power real-time clock with embedded 64-bit unique ID, timing and crystal compensation, clock/calender, power-fail indicator, two periodic or polled alarms, intelligent battery backup switching, and integrated 512x8-bit EEPROM configured in 16 Bytes per page. The oscillator uses an external, low-cost 32. 768kHz crystal. The real-time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year and day of the
A good PCB layout for the ISL12024IBZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low ppm tolerance, maintain a stable power supply, and minimize temperature variations. Additionally, the device should be calibrated periodically to account for any drift in the crystal oscillator.
The maximum frequency of the clock output of the ISL12024IBZ-T is 32.768 kHz, which is the typical frequency used for real-time clock applications.
Yes, the ISL12024IBZ-T is suitable for battery-powered devices due to its low power consumption. It has a typical current consumption of 1.2 μA in the timekeeping mode, making it an ideal choice for battery-powered devices that require a real-time clock.
The ISL12024IBZ-T can be interfaced with a microcontroller using a serial interface such as I2C or SPI. The device provides a 2-wire or 4-wire interface, depending on the configuration, and can operate as a slave device in a microcontroller-based system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL12024IBZ-T Overview

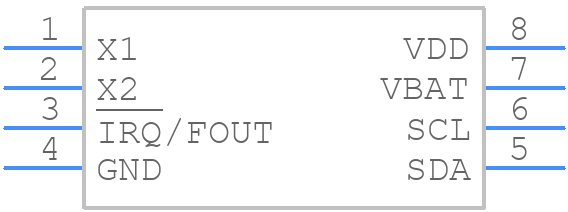

Use the download button to access the ISL12024IBZ-T schematic symbol, PCB footprint, and 3D model.
