ISL12058IBZ-T - Renesas Electronics

Description: The ISL12058 device is a low power real time clock with clock/calendar, and alarm function. The oscillator uses an external, low-cost 32. 768kHz crystal. The real time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year and day of the week. The calendar is accurate through 2099, with automatic leap year correction.

Download ISL12058IBZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

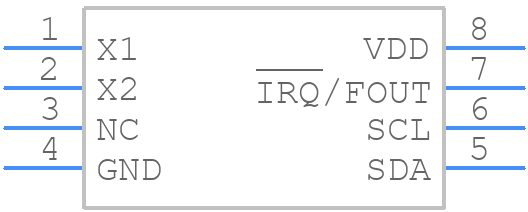

ISL12058IBZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL12058IBZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SOIC--8
click to zoom
3D Models
ISL12058IBZ-T - Renesas Electronics - 3D model - Small Outline Packages - SOIC--8
click to zoom

ISL12058IBZ-T Details

  • Manufacturer Part Number:

    ISL12058IBZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

ISL12058IBZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the application note AN1443, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ISL12058IBZ-T has a built-in crystal oscillator startup timer that ensures the oscillator is stable before the RTC starts counting. The startup time can be adjusted by selecting the appropriate crystal oscillator frequency and load capacitance values. Refer to the application note AN1443 for more information.
  • The ISL12058IBZ-T is rated for operation from -40°C to +85°C, making it suitable for a wide range of industrial and commercial applications.
  • The ISL12058IBZ-T can be interfaced with a microcontroller using a serial interface such as I2C or SPI. Renesas provides example code and application notes for popular microcontrollers to help with the integration process.
  • The typical current consumption of the ISL12058IBZ-T is around 1.5µA in timekeeping mode and 10µA in full operation mode. However, this can vary depending on the specific application and operating conditions.
