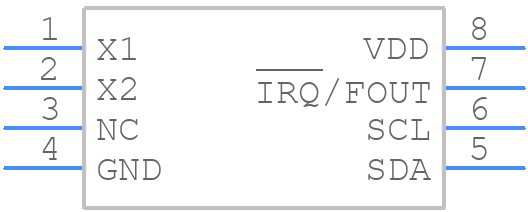

ISL12058IUZ footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

PCB Footprints

3D Models

ISL12058IUZ Details

Renesas provides a recommended PCB layout in the application note AN1443, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The ISL12058IUZ has a built-in crystal oscillator startup timer that can be programmed to ensure the oscillator is stable before the RTC starts counting. The startup time can be adjusted by setting the ST bits in the Control Register 1 (CR1).
The ISL12058IUZ is rated for operation from -40°C to +85°C, but it's recommended to operate within the -20°C to +70°C range for optimal performance and accuracy.
To ensure accuracy, it's essential to use a high-quality crystal oscillator, follow the recommended PCB layout, and compensate for temperature effects using the built-in temperature compensation feature. Additionally, regular calibration of the RTC can help maintain accuracy over time.
Yes, the ISL12058IUZ has a built-in battery backup switchover circuit that allows it to automatically switch to a backup battery when the main power supply fails. This ensures that the RTC continues to operate during power outages.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ISL12058IUZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL12, or try a keyword search, such as Timers or RTCs
