ISL1208IB8Z-TK - Renesas Electronics

Description: The ISL1208 device is a low power real time clock with timing and crystal compensation, clock/calendar, power fail indicator, periodic or polled alarm, intelligent battery backup switching and battery-backed user SRAM. The oscillator uses an external, low-cost 32. 768kHz crystal. The real time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year and day of the week. The calendar is accurate through 2099, with automatic leap year c

Download ISL1208IB8Z-TK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

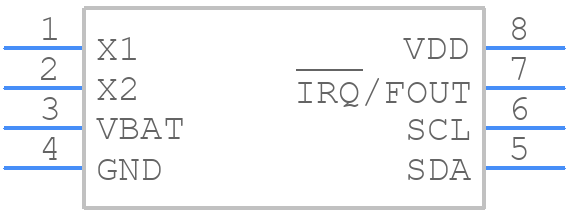

ISL1208IB8Z-TK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL1208IB8Z-TK - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8. 15E
click to zoom
3D Models
ISL1208IB8Z-TK - Renesas Electronics - 3D model - Small Outline Packages - M8. 15E
click to zoom

ISL1208IB8Z-TK Details

  • Manufacturer Part Number:

    ISL1208IB8Z-TK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    2

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.004 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    NO

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

ISL1208IB8Z-TK Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL1208IB8Z-TK involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to place the device close to the crystal oscillator and use a low-ESR capacitor for the VDD pin.
  • To ensure the accuracy of the clock output, it's essential to use a high-quality crystal oscillator with a low equivalent series resistance (ESR) and a high-quality capacitor for the load capacitor. Additionally, the PCB layout should be designed to minimize noise and interference.
  • The ISL1208IB8Z-TK can operate at frequencies up to 125MHz, but the maximum frequency may vary depending on the specific application and the quality of the external crystal oscillator.
  • The ISL1208IB8Z-TK can be configured for a specific clock frequency by selecting the appropriate crystal oscillator frequency and configuring the internal clock divider. The device also has a programmable clock output divider that allows for further frequency adjustment.
  • The power consumption of the ISL1208IB8Z-TK depends on the operating frequency and the specific application. However, the typical power consumption is around 1.5mA at 3.3V and 25°C.
