Description:The ISL1218 device is a low power real time clock with timing and crystal compensation, clock/calendar, power fail indicator, periodic or polled alarm, intelligent battery backup switching and battery-backed user SRAM. The oscillator uses an external, low-cost 32. 768kHz crystal. The real time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year and day of the week. The calendar is accurate through 2099, with automatic leap year c
A good PCB layout for the ISL1218IBZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to place the device close to the crystal oscillator and to use a low-ESR capacitor for the VDD pin.
To ensure proper power-up and initialization of the ISL1218IBZ-T, make sure to follow the recommended power-up sequence, which involves applying VDD before VBAT. Also, ensure that the RST pin is properly connected to a pull-up resistor and capacitor to ensure a clean reset signal.
When using the ISL1218IBZ-T in a high-vibration or high-shock environment, it's essential to ensure that the device is properly secured to the PCB using a robust mounting method, such as a screw or adhesive. Additionally, consider using a vibration-resistant crystal oscillator and ensure that the PCB is designed to withstand the expected levels of vibration and shock.
To troubleshoot issues with the ISL1218IBZ-T, start by verifying the power supply and clock signal integrity. Check the crystal oscillator frequency and amplitude, and ensure that the device is properly configured and initialized. Use a logic analyzer or oscilloscope to monitor the clock signal and debug the issue.
The ISL1218IBZ-T has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure that the device is properly heat-sinked, and that the PCB is designed to minimize thermal resistance. Additionally, consider using thermal simulation tools to model the thermal performance of the device and PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL1218IBZ-T Overview

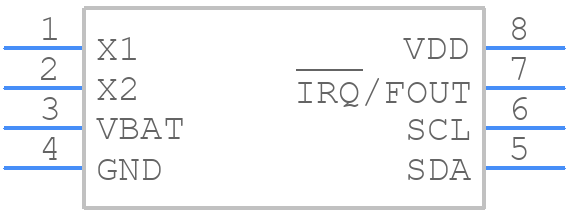

Use the download button to access the ISL1218IBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL12,
or try a keyword search, such as Timers or RTCs
