Description:The ISL1218 device is a low power real time clock with timing and crystal compensation, clock/calendar, power fail indicator, periodic or polled alarm, intelligent battery backup switching and battery-backed user SRAM. The oscillator uses an external, low-cost 32. 768kHz crystal. The real time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year and day of the week. The calendar is accurate through 2099, with automatic leap year c
A good PCB layout for the ISL1218IBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
The ISL1218IBZ requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the VDD pin before the VBAT pin, and to ensure that the VDD pin is stable before applying the VBAT pin.
The recommended crystal oscillator circuit configuration for the ISL1218IBZ involves using a 32.768kHz crystal oscillator with a 1MΩ resistor in series with the crystal, and a 10pF capacitor from the XTAL1 pin to ground. This configuration ensures a stable clock signal and optimal performance.
The ISL1218IBZ can be configured for low-power mode by setting the Power Mode Control (PMC) register to the desired power mode. The device has several power-saving features, including a low-power oscillator, a power-down mode, and a hibernate mode, which can be enabled through the PMC register.
The ISL1218IBZ has a maximum junction temperature of 150°C, and it's recommended to keep the device within a temperature range of -40°C to 85°C for reliable operation. Thermal considerations include ensuring good airflow, using a heat sink if necessary, and avoiding thermal hotspots on the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL1218IBZ Overview

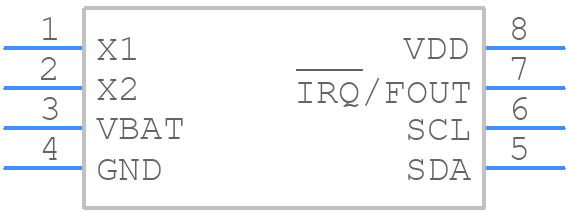

Use the download button to access the ISL1218IBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL12,
or try a keyword search, such as Timers or RTCs
