Description:The ISL15102A is a single port differential line driver developed for Power Line Communication (PLC) applications. The device is designed to drive heavy line loads while maintaining a high level of linearity required in Orthogonal Frequency Division Multiplexing (OFDM) PLC modem links.The ISL15102A has a disable control pin (DIS). In Disable mode, the line driver goes into Low Power mode and the outputs maintain a high impedance in the presence of high receive signal amplitude, improving TDM receive signal
Renesas provides a recommended PCB layout guide in the ISL15102AIRZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable operation over the full temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and thermal management. Additionally, consider using thermal design and simulation tools to optimize the PCB layout and ensure adequate heat dissipation.
The ISL15102AIRZ is designed to meet EMI and RFI standards, but it is still important to follow proper PCB layout and design practices to minimize emissions and susceptibility. This includes using shielding, filtering, and proper grounding techniques.
Yes, the ISL15102AIRZ is designed to meet the requirements of high-reliability and safety-critical applications. However, it is essential to follow the recommended design and testing guidelines, and to consult with Renesas' technical support team to ensure that the device meets the specific requirements of your application.
Common failure modes for the ISL15102AIRZ include overvoltage, overcurrent, and overheating. To mitigate these failure modes, it is essential to follow the recommended operating conditions, use proper thermal management, and implement overvoltage and overcurrent protection circuits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL15102AIRZ Overview

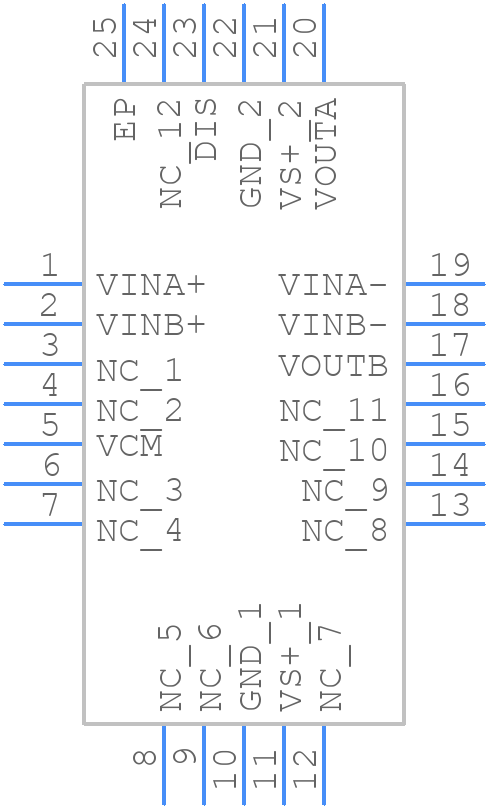

Use the download button to access the ISL15102AIRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL15,
or try a keyword search, such as Line Driver or Receivers
