ISL15110IRZ-T7 - Renesas Electronics

Description: The ISL15110 is a dual port differential line driver developed for Power Line Communication (PLC) Multi Input Multi Output (MIMO) applications. MIMO PLC requires transmission on one or two pairs of Phase, Neutral, and Ground wires. The device is designed to drive heavy line loads while maintaining a high level of linearity required in OFDM PLC modem links. With 15. 5dBm of total MIMO transmit signal power (12. 5dBm per each pair) into a 50Ω line load, the drivers deliver -50dB average MTPR distortion across

Download ISL15110IRZ-T7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

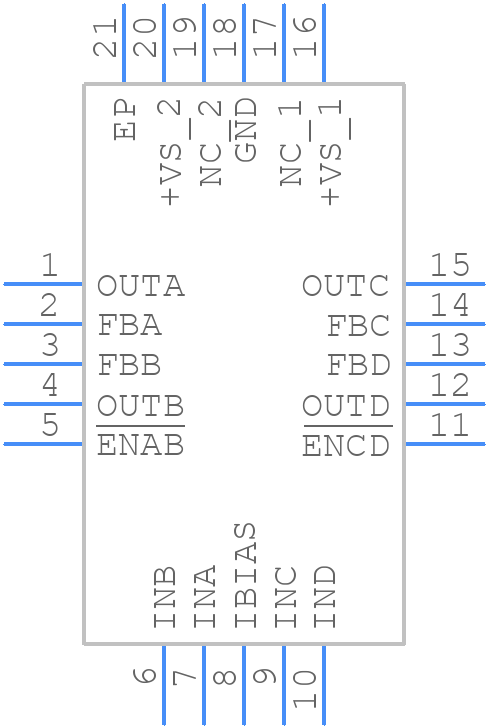

ISL15110IRZ-T7 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL15110IRZ-T7 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L20.4x4C-ren1
click to zoom
3D Models
ISL15110IRZ-T7 - Renesas Electronics - 3D model - Quad Flat No-Lead - L20.4x4C-ren1
click to zoom

ISL15110IRZ-T7 Details

  • Manufacturer Part Number:

    ISL15110IRZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.4X4C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • JESD-30 Code:

    S-PQCC-N20

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

ISL15110IRZ-T7 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ISL15110IRZ-T7 requires a specific power-up sequence to ensure proper initialization. Refer to the datasheet section 7.1, 'Power-Up Sequence', for the recommended power-up procedure.
  • The ISL15110IRZ-T7 is rated for operation from -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Refer to the datasheet section 4, 'Absolute Maximum Ratings', for more information.
  • Renesas provides a troubleshooting guide in the application note AN1996, which includes a step-by-step approach to identifying and resolving common issues with the ISL15110IRZ-T7.
  • Yes, the ISL15110IRZ-T7 is a high-frequency device and requires proper EMI/EMC design considerations. Refer to the application note AN1997, which provides guidelines for minimizing EMI/EMC issues in ISL15110IRZ-T7-based designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL15110IRZ-T7 Overview

Use the download button to access the ISL15110IRZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL15, or try a keyword search, such as Line Driver or Receivers
