Description:The ISL15110 is a dual port differential line driver developed for Power Line Communication (PLC) Multi Input Multi Output (MIMO) applications. MIMO PLC requires transmission on one or two pairs of Phase, Neutral, and Ground wires. The device is designed to drive heavy line loads while maintaining a high level of linearity required in OFDM PLC modem links. With 15. 5dBm of total MIMO transmit signal power (12. 5dBm per each pair) into a 50Ω line load, the drivers deliver -50dB average MTPR distortion across
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The ISL15110IRZ has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The capacitor should be placed as close as possible to the VIN pin and have a low inductance path to the power source.
To ensure stability, follow the recommended PCB layout and component selection guidelines. Additionally, ensure that the output capacitor value and type are within the recommended range, and that the feedback network is properly designed and implemented. Renesas also provides a stability analysis tool to help designers verify the stability of their design.
The ISL15110IRZ has a maximum output current capability of 10A, but this can be limited by the thermal performance of the device and the PCB. It's essential to ensure that the device is properly cooled and that the output current is within the recommended range to avoid overheating and damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL15110IRZ Overview

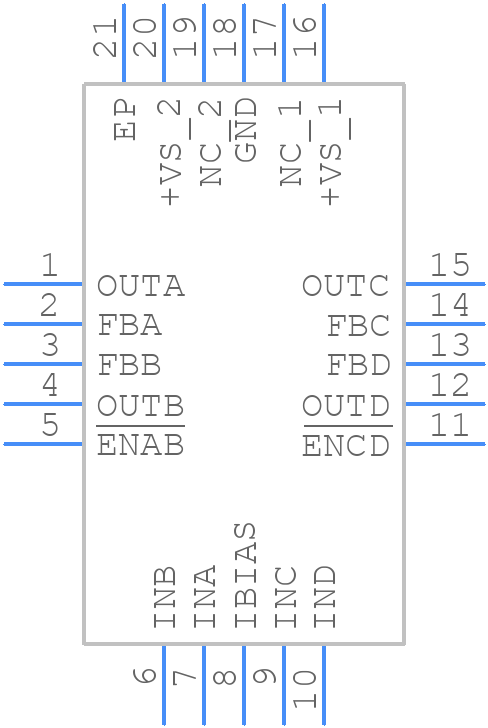

Use the download button to access the ISL15110IRZ schematic symbol, PCB footprint, and 3D model.
