Description:The ISL1539A provides 4 internal wideband op amps intended to be used as two pairs of differential line drivers. The ISL1539As high bandwidth, 240MHz, and ultra low distortion, -89dBc @ 1MHz, 2VP-P, support the demanding MTPR requirements of emerging VDSL2 line driver designs. Less demanding requirements can be met at very low quiescent powers using the supply current adjustment features. Each of the 4 internal op amps is a wideband current feedback amplifier offering very high slew rate intrinsic to that d
Renesas provides a recommended PCB layout in the ISL1539AIRZ-T13 evaluation board user manual, which includes guidelines for component placement, routing, and thermal management.
To ensure accurate voltage regulation, follow the datasheet's guidelines for input and output capacitor selection, and ensure that the device is operated within its specified temperature range.
The maximum allowable ripple voltage on the input and output is not explicitly stated in the datasheet. However, as a general guideline, the input ripple voltage should be kept below 1% of the input voltage, and the output ripple voltage should be kept below 1% of the output voltage.
The ISL1539AIRZ-T13 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to consult the datasheet and application notes for guidance on high-temperature operation.
To troubleshoot temperature-related issues, check the device's thermal management, ensure proper PCB layout, and verify that the device is operated within its recommended temperature range. Consult the datasheet and application notes for additional guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL1539AIRZ-T13 Overview

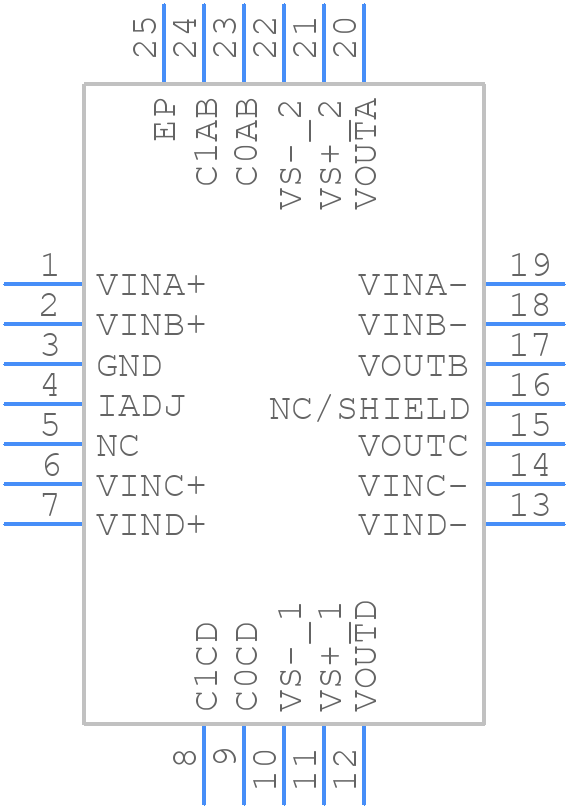

Use the download button to access the ISL1539AIRZ-T13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL15,
or try a keyword search, such as Line Driver or Receivers
