Description:The ISL1539A provides 4 internal wideband op amps intended to be used as two pairs of differential line drivers. The ISL1539As high bandwidth, 240MHz, and ultra low distortion, -89dBc @ 1MHz, 2VP-P, support the demanding MTPR requirements of emerging VDSL2 line driver designs. Less demanding requirements can be met at very low quiescent powers using the supply current adjustment features. Each of the 4 internal op amps is a wideband current feedback amplifier offering very high slew rate intrinsic to that d
A good PCB layout is crucial for the ISL1539AIRZ. Renesas recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, place the input and output capacitors close to the IC, and use short, wide traces for the power lines.
To ensure stability, make sure to follow the recommended component values and PCB layout. Also, add a 10nF to 100nF capacitor between the VCC and GND pins to filter out noise. If oscillations occur, try adding a 1kΩ to 10kΩ resistor in series with the output capacitor.
The ISL1539AIRZ can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. Be sure to check the datasheet for the specific current limits and thermal derating curves.
The ISL1539AIRZ is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Be sure to follow the thermal derating curves and consider using a heat sink or thermal management system if operating in high-temperature environments.
Start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or noise on the output. If issues persist, consult the datasheet and application notes or contact Renesas support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL1539AIRZ Overview

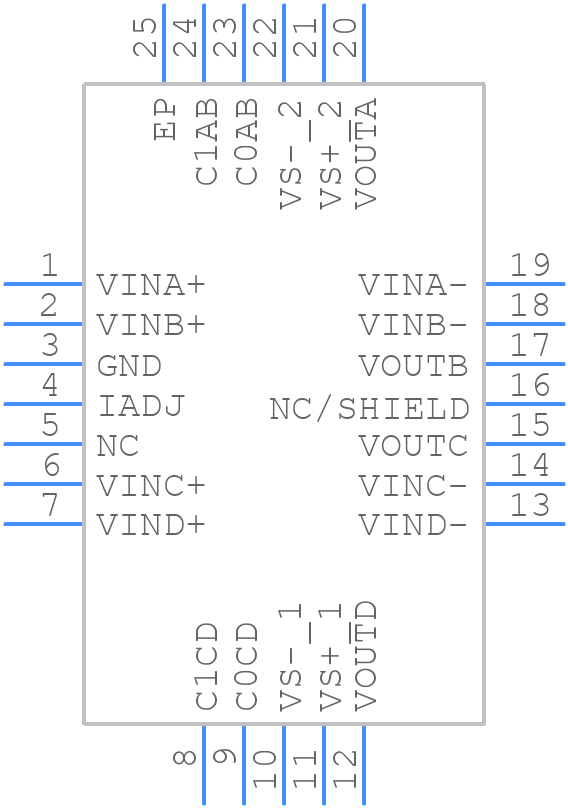

Use the download button to access the ISL1539AIRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL15,
or try a keyword search, such as Line Driver or Receivers
