Description:The ISL1557A is a dual operational amplifier designed for VDSL2 and ADSL line driving in DMT based solutions. This device features a high drive capability of 750mA while consuming only 6mA of supply current per amplifier and operating from a single 4. 5V to 12V supply. The driver achieves a typical distortion of -80dBc at 150kHz into a 25Ω load. The ISL1557A is designed with stronger output clamps to enhance protection against lightning transients. The ISL1557A is available in the thermally-enhanced 16 Ld Q
A good PCB layout for the ISL1557AIRZ-T7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for decoupling.
To ensure proper powering and decoupling of the ISL1557AIRZ-T7, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the device's power pins. Additionally, use a separate analog and digital power supply, and ensure the power supply rails are well-filtered and regulated.
The recommended input termination for the ISL1557AIRZ-T7 is 50 ohms, and the recommended output termination is 50 ohms to 75 ohms, depending on the specific application and transmission line impedance.
To handle thermal management of the ISL1557AIRZ-T7, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, follow the recommended PCB layout guidelines to minimize thermal resistance.
The ISL1557AIRZ-T7 has built-in ESD protection, but it's still important to handle the device with care. Use an anti-static wrist strap or mat, handle the device by the body or pins, and avoid touching the pins or exposed die.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL1557AIRZ-T7 Overview

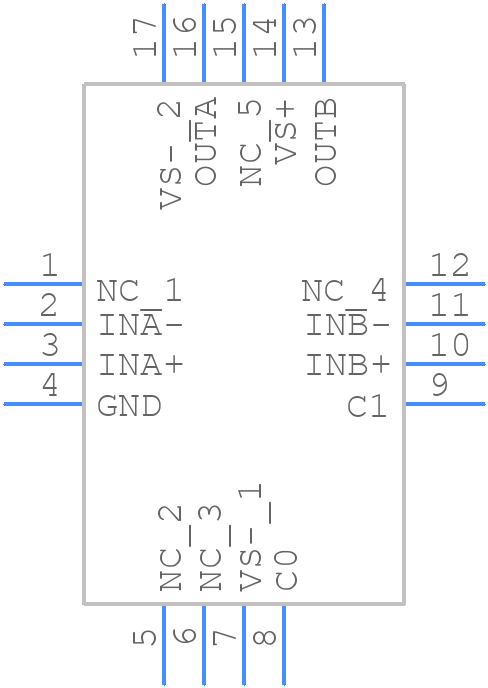

Use the download button to access the ISL1557AIRZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL15,
or try a keyword search, such as Line Driver or Receivers
