Description:The ISL2110, ISL2111 are 100V, high frequency, half-bridge N-Channel power MOSFET driver ICs. They are based on the popular HIP2100, HIP2101 half-bridge drivers, but offer several performance improvements. Peak output pull-up/pull-down current has been increased to 3A/4A, which significantly reduces switching power losses and eliminates the need for external totem-pole buffers in many applications. Also, the low end of the VDD operational supply range has been extended to 8VDC. The ISL2110 has additional in
The recommended PCB layout for optimal performance involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the output voltage sense pins to minimize noise and ensure accurate voltage regulation.
To ensure stability and prevent oscillations in the output voltage, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, the output capacitor should be selected based on the ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) values, and the input capacitor should be chosen based on the RMS current rating and voltage rating.
The maximum allowed input voltage ripple for the ISL2111AR4Z is not explicitly stated in the datasheet, but as a general rule, it's recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure stable operation and prevent voltage regulator dropout.
The ISL2111AR4Z is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and derate the device's performance accordingly. Additionally, the user should ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures.
The power dissipation of the ISL2111AR4Z can be calculated using the formula Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The junction temperature can be estimated using the thermal resistance (RθJA) and the power dissipation values. The thermal resistance can be found in the datasheet, and the power dissipation calculation should take into account the device's efficiency and the ambient temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL2111AR4Z Overview

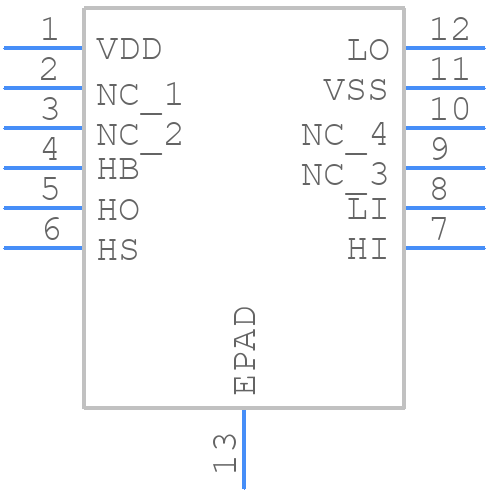

Use the download button to access the ISL2111AR4Z schematic symbol, PCB footprint, and 3D model.
